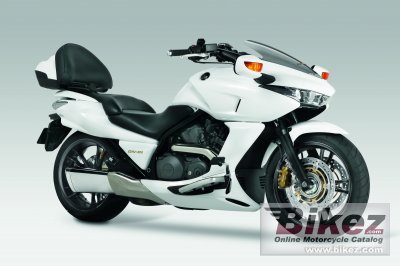

2011 Honda DN-01 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda DN-01.

Basic Specs

Year2011
MakeHonda
ModelHonda DN-01
CostUS$ 15999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement680.00 ccm (41.49 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke81.0 x 66.0 mm (3.2 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions

Chassis

Frame Type
Rake28.5°
Trail114 mm (4.5 inches)
Front Suspension41mm telescopic fork with 4.2 inches travel
Front Travel
Rear SuspensionPro Arm single-side swingarm with single shock, seven-position spring preload adjustability
Rear Travel119 mm (4.7 inches)
Seat
Seat Height691 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,605 mm (63.2 inches)
Dry Weight
Wet Weight269.9 kg (595.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter276 mm (10.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda DN-01. This Allround model is powered by a V2, four-stroke engine with 680.00 ccm (41.49 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda DN-01 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda DN-01 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: NSA700A
