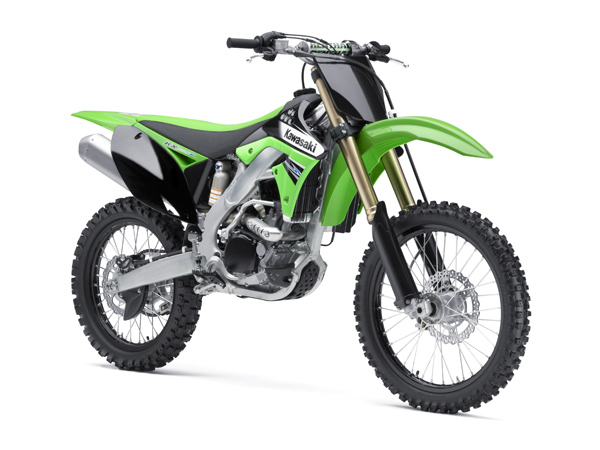

These are the known mechanical and performance specifications for your 2011 Kawasaki KX 250F.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.5:1
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder4
FuelingCarburettor. 43mm Keihin throttle body
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions
Chassis
Frame TypeAluminum perimeter
Rake28.2°
Trail119 mm (4.7 inches)
Front Suspension47mm inverted Showa SFF telescopic fork with spring preload adjustability and 22 position compression and 20 position rebound damping adjustability/ 12.4 in.
Front Travel
Rear SuspensionUni-Trak linkage system and Showa shock with 19 position low-speed and stepless high-speed compression damping, 22 position rebound damping and fully adjustable spring preload / 12.2 in.
Rear Travel
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,270 mm (50.0 inches)
Total Length2,169 mm (85.4 inches)
Total Width820 mm (32.3 inches)
Ground Clearance330 mm (13.0 inches)
Wheelbase1,476 mm (58.1 inches)
Dry Weight
Wet Weight105.6 kg (232.7 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
