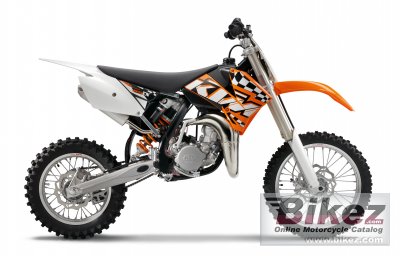

These are the known mechanical and performance specifications for your 2011 KTM 85 SX 17-14.
Basic Specs
Engine
Displacement84.90 ccm (5.18 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28
IgnitionMoric digital 2M1
ExhaustAluminium
LubricationMixture oil lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet mDouble disk clutch, operated hydraulically
Driveline14:49. Primary drive: 19:66.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeDouble grinded central double-cradle-type frame. Subframe: Aluminium.
Rake24.0°
Trail
Front SuspensionWP USD 43 mm (1.69 in)
Front Travel185 mm (7.3 inches)
Rear SuspensionWP PDS mono shock
Rear Travel185 mm (7.3 inches)
Seat
Seat Height845 mm (33.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight66.0 kg (145.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-17
Rear Tire/Tyre90/100-14
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
Wheels1.4 x 17in., 1.6 x 14in. Alu
