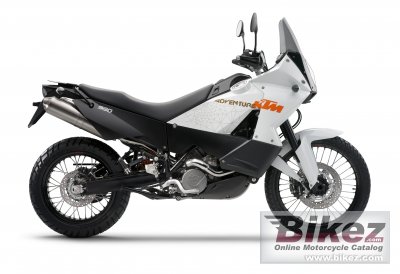

2011 KTM 990 Adventure Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 KTM 990 Adventure.

Basic Specs

Year2011
MakeKTM
ModelKTM 990 Adventure
Cost

Engine

Displacement999.00 ccm (60.96 cubic inches)
TypeV 75°
DetailsV2, two-stroke
Max RPM
Compression11.5:1
Bore/Stroke101.0 x 62.4 mm (4.0 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Keihin
Ignition
ExhaustTwin stainless steel silencer with regulated catalytic converter
LubricationPressure lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet mDouble disk clutch, operated hydraulically
Driveline16:42. Primary drive: 35:67. X-Ring 5/8 x 5/16.

Performance

Horespower104.60 HP (76.4 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.50 litres (5.15 gallons)
Emissions

Chassis

Frame TypeChromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium.
Rake26.6°
Trail119 mm (4.7 inches)
Front SuspensionWP USD 48 mm (1.89 in)
Front Travel210 mm (8.3 inches)
Rear SuspensionWP mono shock PDS with hydr. spring preload
Rear Travel210 mm (8.3 inches)
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance261 mm (10.3 inches)
Wheelbase1,570 mm (61.8 inches)
Dry Weight209.0 kg (460.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-R18
Front BrakesDouble disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels2.15 x 21in., 4.25 x 18in.

Comments

It appears you're interested in specifications for the KTM 990 Adventure. This Super motard model is powered by a V 75° V2, two-stroke engine with 999.00 ccm (60.96 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Keihin allowing this machine to produce its 104.60 HP (76.4 kW) horsepower and 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) torque. According to our records engine heat of the KTM 990 Adventure is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/70-R18 . The entire package is supported by the frame, Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The KTM 990 Adventure was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
