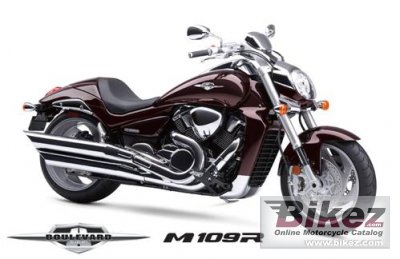

2011 Suzuki Boulevard M109R2 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Suzuki Boulevard M109R2.

Basic Specs

Year2011
MakeSuzuki
ModelSuzuki Boulevard M109R2
CostUS$ 13799. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1783.00 ccm (108.80 cubic inches)
Type54° V-twin
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke112.0 x 90.5 mm (4.4 x 3.6 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic
Exhaust
LubricationSemi-Dry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque46.00 Nm (4.7 kgf-m or 33.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.50 litres (5.15 gallons)
Emissions

Chassis

Frame TypeHigh-tensile double cradle steel frame. A cast aluminum alloy swingarm works with a progressive shock linkage and a preload adjustable single rear shock delivering 4.66 inches of wheel travel working through a shaft drive system
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel130 mm (5.1 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width875 mm (34.4 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight
Wet Weight347.0 kg (765.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter275 mm (10.8 inches)
WheelsSpiral spoke cast aluminum alloy

Comments

It appears you're interested in specifications for the Suzuki Boulevard M109R2. This Custom / cruiser model is powered by a 54° V-twin V2, four-stroke engine with 1783.00 ccm (108.80 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 46.00 Nm (4.7 kgf-m or 33.9 ft.lbs) torque. According to our records engine heat of the Suzuki Boulevard M109R2 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 240/40-R18 . The entire package is supported by the frame, High-tensile double cradle steel frame. A cast aluminum alloy swingarm works with a progressive shock linkage and a preload adjustable single rear shock delivering 4.66 inches of wheel travel working through a shaft drive system. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki Boulevard M109R2 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
