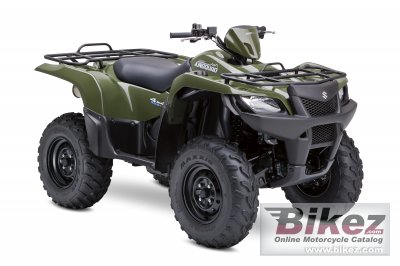

These are the known mechanical and performance specifications for your 2011 Suzuki KingQuad 450AXi.
Basic Specs
Year2011
MakeSuzuki
ModelSuzuki KingQuad 450AXi
TypeATV
CostUS$ 6999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement454.00 ccm (27.70 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke84.0 x 82.0 mm (3.3 x 3.2 inches)
Valves/Cylinder
FuelingInjection. Suzuki fuel injection
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
DrivelineAutomatic variable ratio (V-belt), with high-/low-range, and reverse
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions
Chassis
Frame TypeIndependent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment.
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionFully independent A-Arm and I-Beam rear suspension with five-way preload-adjustable shock absorbers
Rear Travel
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height450 mm (17.7 inches)
Total Length2,115 mm (83.3 inches)
Total Width1,210 mm (47.6 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight
Wet Weight305.0 kg (672.4 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesDouble disc
Rear Brake Diameter
Wheels
Comments
Optional power steering and camo paint. A limited edition also exists.
