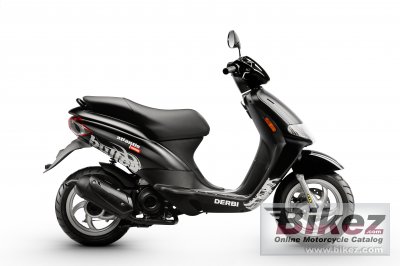

These are the known mechanical and performance specifications for your 2012 Derbi Atlantis 50 2T.
Basic Specs
Year2012
MakeDerbi
ModelDerbi Atlantis 50 2T
TypeScooter
Cost Euro 1538. Prices depend on country, taxes, accessories, etc.
Engine
Displacement49.38 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression10.5:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. 17.5 mm
IgnitionElectronic C.D.I.
Exhaust
LubricationMechanical oil pump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.10 litres (1.88 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionHydraulic fork.
Front Travel65 mm (2.6 inches)
Rear SuspensionMonoshock.
Rear Travel65 mm (2.6 inches)
SeatDual
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length1,810 mm (71.3 inches)
Total Width
Ground Clearance
Wheelbase1,265 mm (49.8 inches)
Dry Weight86.0 kg (189.6 pounds)
Wet Weight95.0 kg (209.4 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre120/70-12
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels5-spoke
Comments
Spanish made scooter
