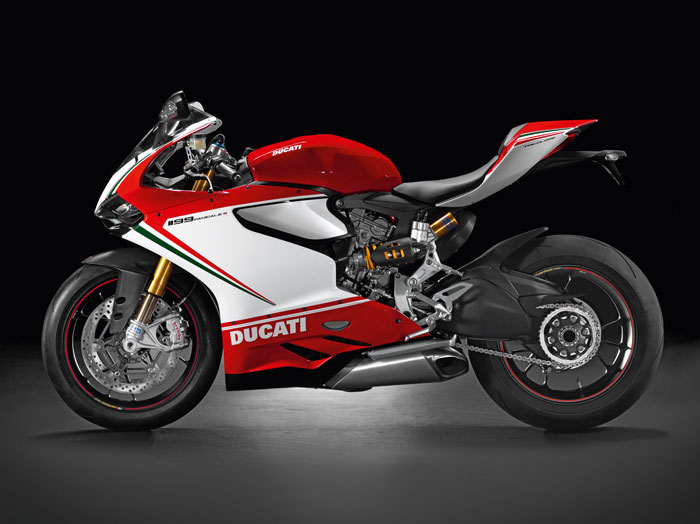

2012 Ducati 1199 Panigale S Tricolore Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Ducati 1199 Panigale S Tricolore.

Basic Specs

Year2012
MakeDucati
ModelDucati 1199 Panigale S Tricolore
TypeSport
Cost

Engine

Displacement849.40 ccm (51.83 cubic inches)
TypeL-twin cylinder
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke112.0 x 60.8 mm (4.4 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Ignition
ExhaustDucati performance exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Driveline

Performance

Horespower195.00 HP (142.3 kW)
Torque132.00 Nm (13.5 kgf-m or 97.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeMonocoque aluminium
Rake24.5°
Trail
Front SuspensionÖhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment
Front Travel
Rear SuspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm.
Rear Travel
Seat2-person seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,437 mm (56.6 inches)
Dry Weight166.0 kg (366.0 pounds)
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers. ABS.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. 2-piston calliper. ABS.
Rear Brake Diameter245 mm (9.6 inches)
WheelsMarchesini wheels, 3 spoke forged light alloy

Comments

It appears you're interested in specifications for the Ducati 1199 Panigale S Tricolore. This Sport model is powered by a L-twin cylinder V2, four-stroke engine with 849.40 ccm (51.83 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. allowing this machine to produce its 195.00 HP (142.3 kW) horsepower and 132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) torque. According to our records engine heat of the Ducati 1199 Panigale S Tricolore is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Monocoque aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers. ABS. front brakes and Single disc. 2-piston calliper. ABS. rear brakes. The Ducati 1199 Panigale S Tricolore was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride by Wire technonlogy
