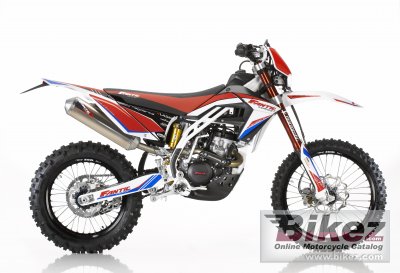

2012 Fantic Caballero TF 250 ES Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Fantic Caballero TF 250 ES.

Basic Specs

Year2012
MakeFantic
ModelFantic Caballero TF 250 ES
Cost

Engine

Displacement249.60 ccm (15.23 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder5
FuelingCarburettor. Keihin FCR-MX
IgnitionKokusan
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multidisk
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions

Chassis

Frame TypePerimetrale in steel and CrMo
Rake
Trail
Front SuspensionMarzocchi fork, 48mm
Front Travel300 mm (11.8 inches)
Rear SuspensionOhlins TTX monoshock with triple regulation
Rear Travel315 mm (12.4 inches)
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,060 mm (81.1 inches)
Total Width
Ground Clearance
Wheelbase1,473 mm (58.0 inches)
Dry Weight109.0 kg (240.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. Wave
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave
Rear Brake Diameter220 mm (8.7 inches)
WheelsBlack rims

Comments

It appears you're interested in specifications for the Fantic Caballero TF 250 ES. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 249.60 ccm (15.23 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin FCR-MX allowing this machine to produce its horsepower and torque. According to our records engine heat of the Fantic Caballero TF 250 ES is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Perimetrale in steel and CrMo. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave front brakes and Single disc. Wave rear brakes. The Fantic Caballero TF 250 ES was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also called Regolarita´ Scuderia 250 4T. Italian brand.
