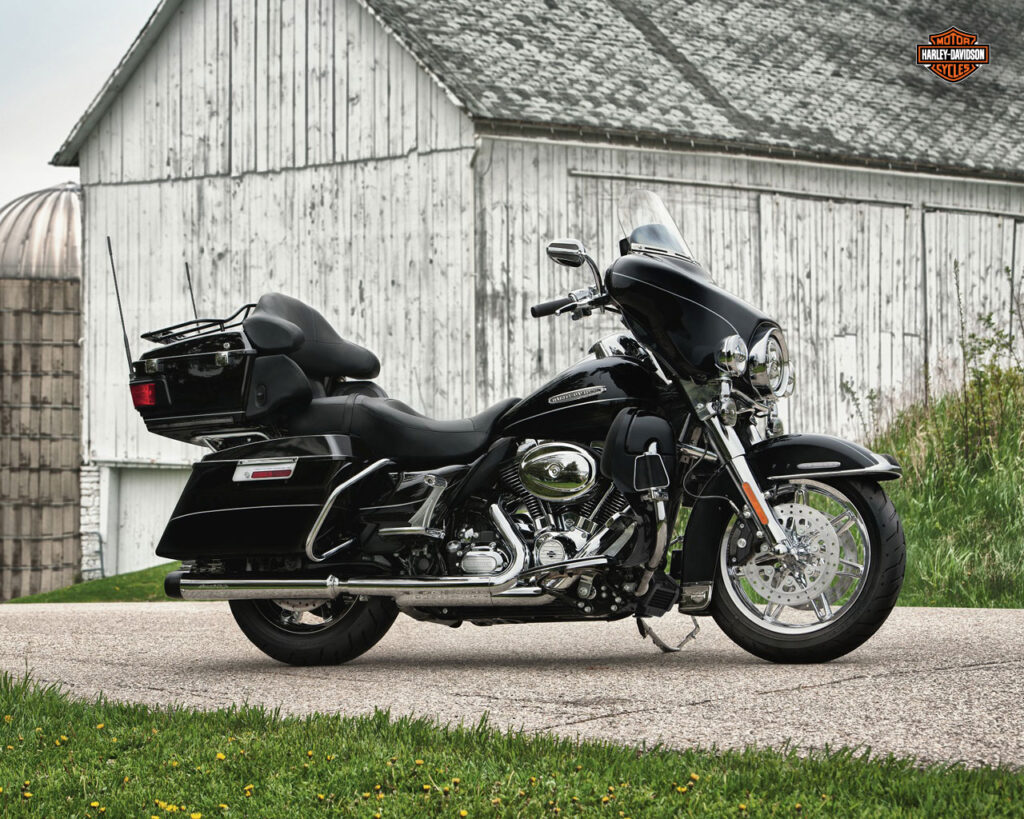

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FLHTK Electra Glide Ultra Limited.
Basic Specs
Year2012
MakeHarley-Davidson
ModelHarley-Davidson FLHTK Electra Glide Ultra Limited
TypeTouring
CostUS$ 23799. Euro 27495. UK £ 21199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled Twin Cam 103™ with Integrated Oil-Cooler. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifter.
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationPressurized, dry-sump with oil cooler
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3 mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.
Rear Travel76 mm (3.0 inches)
SeatOne-piece, two-up Electra Glide® classic comfort stitch seat, sculpted for added comfort and easier straddling. Passenger backrest with wrap-around armrests.
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,504 mm (98.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight388.7 kg (857.0 pounds)
Wet Weight408.7 kg (901.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-NW17
Rear Tire/Tyre180/65-NW16
Front BrakesDouble disc. 4-piston calipers. ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston caliper. ABS.
Rear Brake Diameter300 mm (11.8 inches)
WheelsBlack and Chrome, 28-spoke Cast Aluminum
Comments
Sidecar option. Bat-wing, fork-mounted fairing with clear, Lexan® windshield. Injection-molded hard saddlebags with liners;2.26 cu. ft. volume. Injection Molded hard Tour-Pak® with soft luggage liners, storage pockets, wrap-around rear tail/brake lights and 12-volt, 15 amp power supply; 2.26 cu. ft. volume. Premium Tour-Pak luggage rack.
