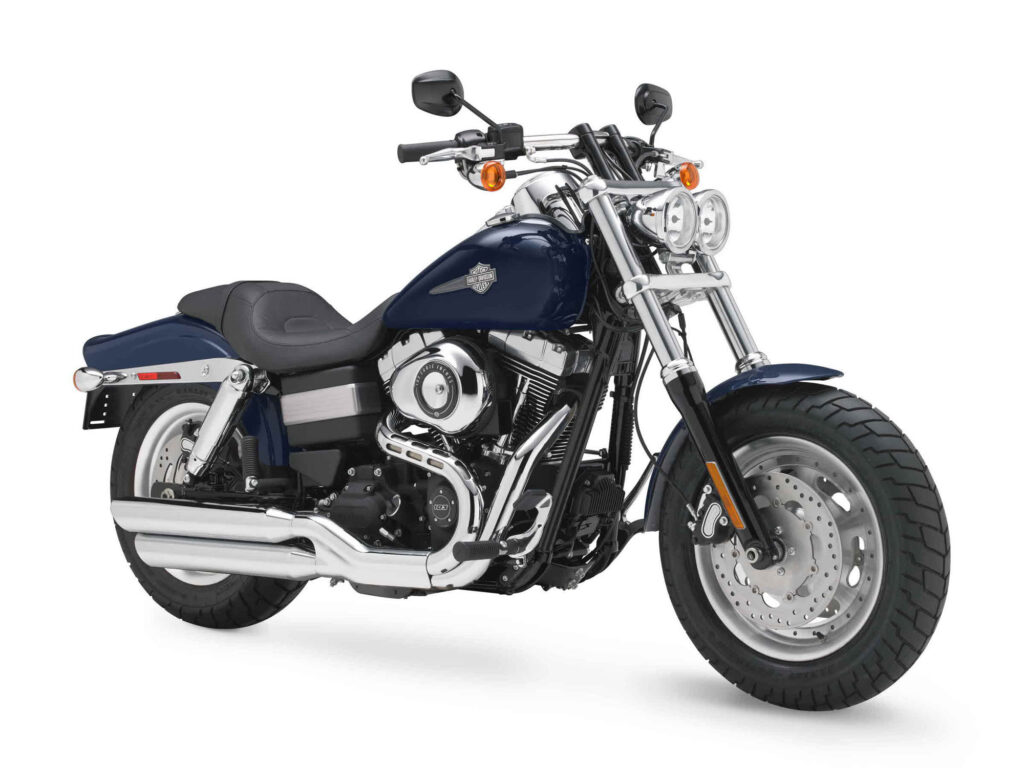

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FXDF Dyna Fat Bob.
Basic Specs
Year2012
MakeHarley-Davidson
ModelHarley-Davidson FXDF Dyna Fat Bob
TypeCustom / cruiser
CostUS$ 15349. Euro 15785. UK £ 12499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio.
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake29.0°
Trail125 mm (4.9 inches)
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock. Mild steel, rectangular tube sections, stamped junctions; MIG welded swingarm.
Rear Travel54 mm (2.1 inches)
SeatOne-piece, two-up Dyna classic seat
Seat Height663 mm (26.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,329 mm (91.7 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,618 mm (63.7 inches)
Dry Weight305.3 kg (673.0 pounds)
Wet Weight320.2 kg (706.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre180/70-B16
Front BrakesSingle disc. 4-piston fixed. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston torque-free floating. Optional ABS.
Rear Brake Diameter292 mm (11.5 inches)
WheelsMachined, Aluminum Slotted Disc
