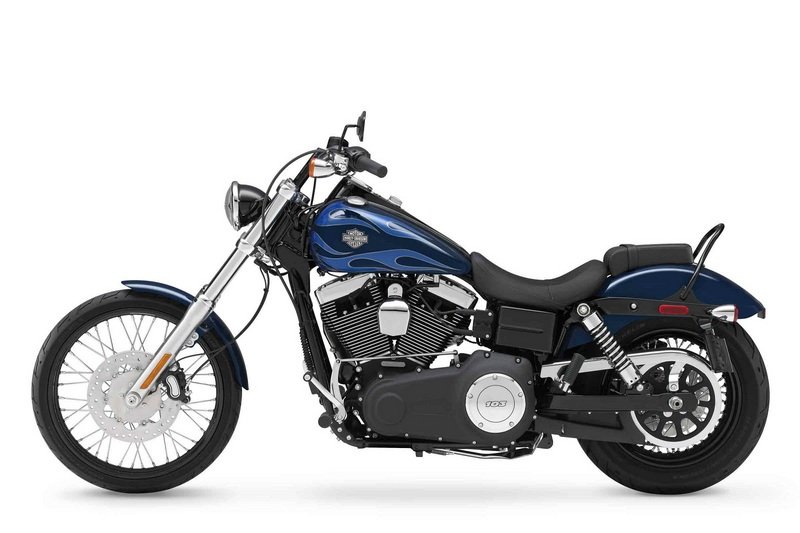

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FXDWG Dyna Wide Glide.
Basic Specs
Year2012
MakeHarley-Davidson
ModelHarley-Davidson FXDWG Dyna Wide Glide
TypeCustom / cruiser
CostUS$ 14849. Euro 15495. UK £ 12099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103™. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust
LubricationPressurized, dry-sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio.
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.79 litres (4.70 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake34.0°
Trail132 mm (5.2 inches)
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs
Front Travel127 mm (5.0 inches)
Rear SuspensionCoil-over shock. Mild steel, rectangular tube sections, stamped junctions; MIG welded swingarm.
Rear Travel79 mm (3.1 inches)
SeatLow solo seat with separate passenger pillion
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,388 mm (94.0 inches)
Total Width
Ground Clearance107 mm (4.2 inches)
Wheelbase1,735 mm (68.3 inches)
Dry Weight294.8 kg (650.0 pounds)
Wet Weight303.0 kg (668.0 pounds)
Wheels & Brakes
Front Tire/Tyre80/90-H21
Rear Tire/Tyre180/60-B17
Front BrakesSingle disc. 4-piston fixed. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston torque-free floating. Optional ABS.
Rear Brake Diameter292 mm (11.5 inches)
WheelsBlack, Laced Steel
