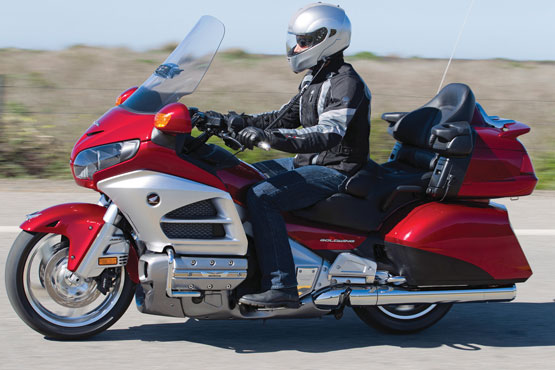

2012 Honda Gold Wing Air Bag Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Honda Gold Wing Air Bag.

Basic Specs

Year2012
MakeHonda
ModelHonda Gold Wing Air Bag
CostUS$ 29350. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1832.00 ccm (111.79 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Programmed Fuel Injection (PGM-FI)
IgnitionComputer-controlled digital with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity24.98 litres (6.60 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake29.2°
Trail109 mm (4.3 inches)
Front Suspension45mm cartridge fork with anti-dive system, 4.8 inches travel
Front Travel
Rear SuspensionPro Arm® single-side swingarm with Pro-Link® single shock with computer-controlled spring preload adjustment with two memory presets; 4.1 inches travel
Rear Travel
Seat
Seat Height739 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,689 mm (66.5 inches)
Dry Weight
Wet Weight423.2 kg (933.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc. ABS
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Gold Wing Air Bag. This Touring model is powered by a Six cylinder boxer, four-stroke engine with 1832.00 ccm (111.79 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI) allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Gold Wing Air Bag is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 180/60-R16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Honda Gold Wing Air Bag was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Electric reverse. Heated grips, seat, and foot warmer; Premium Surround Sound; Cruise Control; Satellite-Linked Navigation System and XM Radio. Electric Reverse. Air bag. Model ID: GL1800.
