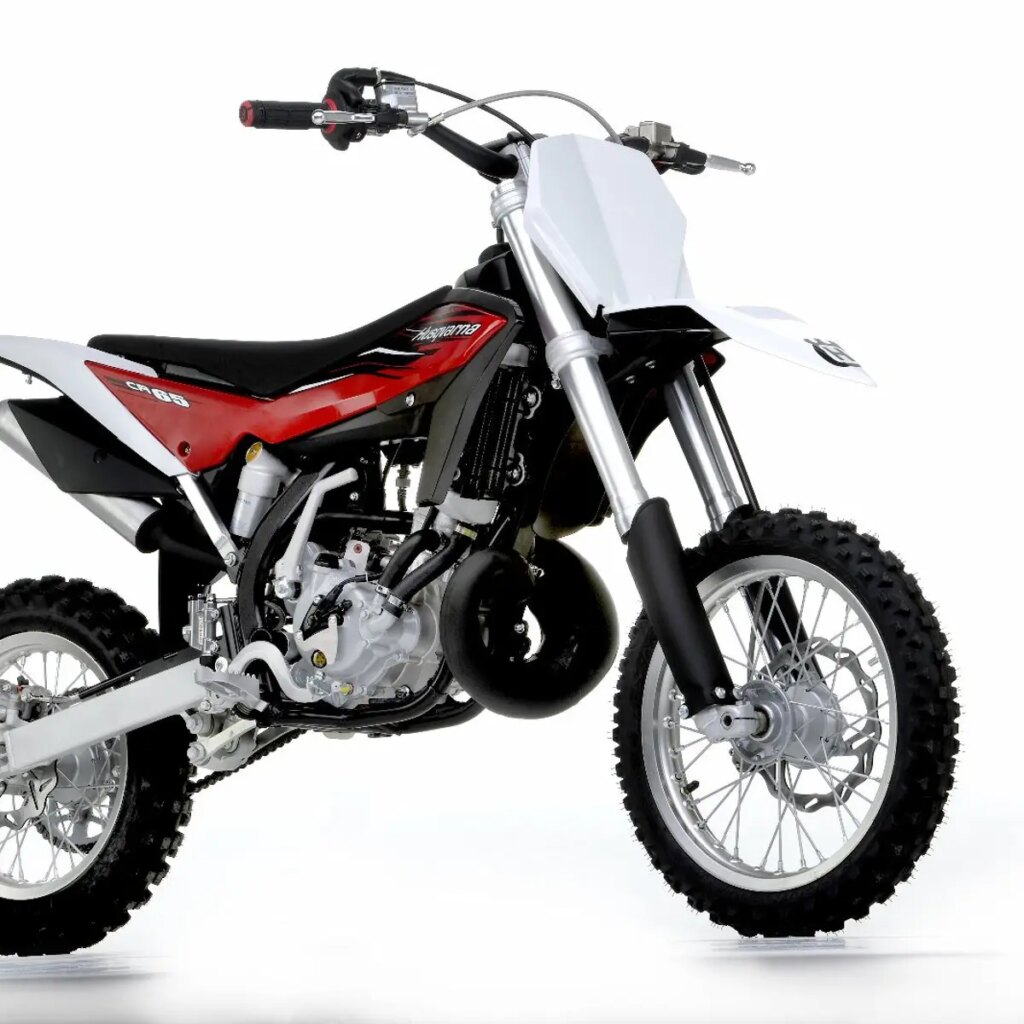

2012 Husqvarna CR65 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Husqvarna CR65.

Basic Specs

Year2012
MakeHusqvarna
ModelHusqvarna CR65
Cost

Engine

Displacement64.90 ccm (3.96 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression9.1:1
Bore/Stroke45.0 x 40.8 mm (1.8 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TM 24 with flat valve
IgnitionElectronic
Exhaust
LubricationPremix 25 : 1
CoolingLiquid

Drivetrain

Gearbox1-speed
Final DriveChain
ClutchWet, multiplate, hydraulic control
DrivelineSingle speed, chain final drive

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.50 litres (0.92 gallons)
Emissions

Chassis

Frame TypeSteel single tube cradle, alloy rear frame
Rake
Trail
Front SuspensionMarzocchi USD fork with advanced axle
Front Travel220 mm (8.7 inches)
Rear SuspensionSachs Progressive Soft Damp type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment
Rear Travel270 mm (10.6 inches)
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,015 mm (40.0 inches)
Total Length1,640 mm (64.6 inches)
Total Width770 mm (30.3 inches)
Ground Clearance280 mm (11.0 inches)
Wheelbase1,130 mm (44.5 inches)
Dry Weight55.0 kg (121.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre60/100-14
Rear Tire/Tyre60/100-12
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter165 mm (6.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna CR65. This Minibike, cross model is powered by a Single cylinder, two-stroke engine with 64.90 ccm (3.96 cubic inches) of actual displacement before 9.1:1 compression. Fueling is metered via Carburettor. Mikuni TM 24 with flat valve allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna CR65 is moderated by Liquid. You'll need to get familiar with the 1-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 60/100-14 and the rear is 60/100-12 . The entire package is supported by the frame, Steel single tube cradle, alloy rear frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna CR65 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
