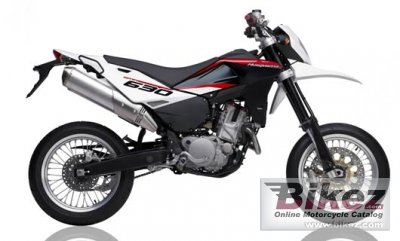

2012 Husqvarna SMS630 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Husqvarna SMS630.

Basic Specs

Year2012
MakeHusqvarna
ModelHusqvarna SMS630
Cost

Engine

Displacement600.00 ccm (36.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.4:1
Bore/Stroke100.0 x 76.4 mm (3.9 x 3.0 inches)
Valves/Cylinder
FuelingInjection. Mikuni Digital Fuel Injection
IgnitionElectronic, inductive discharge, with adjustable advance
Exhaust
LubricationWet sump with oil pump and cartridge filter
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchWet, multi-plate type, hydraulic control
Driveline6 speed constant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeSteel single tube cradle; rear frame in light alloy
Rake
Trail
Front SuspensionMarzocchi USD telescopic hydraulic fork with advanced axle, rebound stroke adjustment
Front Travel250 mm (9.8 inches)
Rear SuspensionSachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment)
Rear Travel290 mm (11.4 inches)
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,190 mm (46.9 inches)
Total Length2,170 mm (85.4 inches)
Total Width840 mm (33.1 inches)
Ground Clearance240 mm (9.4 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight151.0 kg (332.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna SMS630. This Super motard model is powered by a Single cylinder, four-stroke engine with 600.00 ccm (36.61 cubic inches) of actual displacement before 12.4:1 compression. Fueling is metered via Injection. Mikuni Digital Fuel Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna SMS630 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 150/60-17 . The entire package is supported by the frame, Steel single tube cradle; rear frame in light alloy. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna SMS630 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
