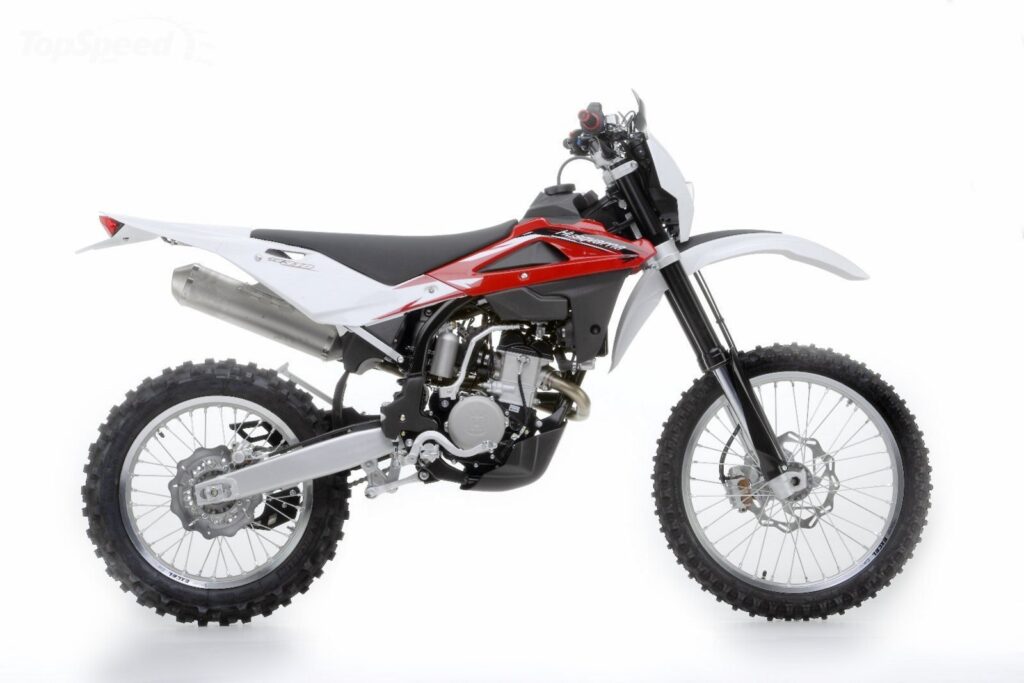

2012 Husqvarna TE310 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Husqvarna TE310.

Basic Specs

Year2012
MakeHusqvarna
ModelHusqvarna TE310
CostUS$ 8199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement302.44 ccm (18.45 cubic inches)
TypeTitanium valves in radial arrangemen
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke82.0 x 82.0 mm (3.2 x 3.2 inches)
Valves/Cylinder
FuelingInjection. Mikuni Digital Fuel Injection
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-plate with hydraulic control
DrivelineConstant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.52 litres (2.25 gallons)
Emissions

Chassis

Frame TypeChromoly single tube frame cradle utilizes rounded-rectangle, elliptical tubing for maximum strength and durability.
Rake26.5°
Trail106 mm (4.2 inches)
Front Suspension48mm Kayaba USD
Front Travel300 mm (11.8 inches)
Rear SuspensionKayaba Progressive ´Soft Damp´ hydraulic single shock
Rear Travel295 mm (11.6 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,260 mm (89.0 inches)
Total Width820 mm (32.3 inches)
Ground Clearance290 mm (11.4 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight112.0 kg (247.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/90-18
Front BrakesSingle disc. Bremo
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TE310. This Enduro / offroad model is powered by a Titanium valves in radial arrangemen Single cylinder, four-stroke engine with 302.44 ccm (18.45 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Mikuni Digital Fuel Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TE310 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/90-18 . The entire package is supported by the frame, Chromoly single tube frame cradle utilizes rounded-rectangle, elliptical tubing for maximum strength and durability.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Bremo front brakes and Single disc rear brakes. The Husqvarna TE310 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
