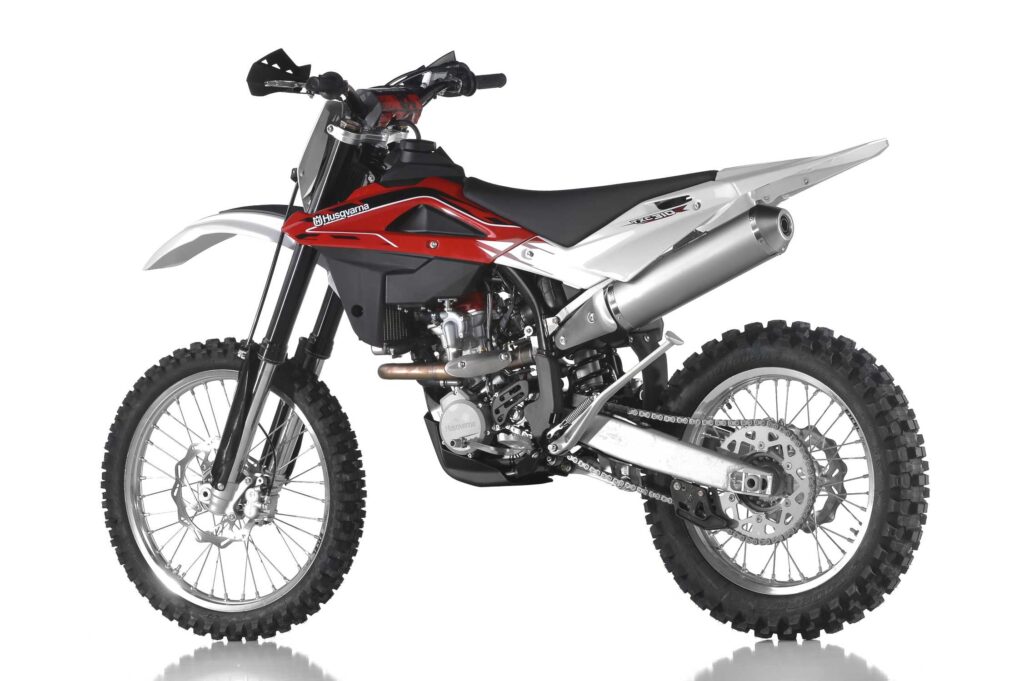

2012 Husqvarna TXC310 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Husqvarna TXC310.

Basic Specs

Year2012
MakeHusqvarna
ModelHusqvarna TXC310
CostUS$ 7889. Prices depend on country, taxes, accessories, etc.

Engine

Displacement302.40 ccm (18.45 cubic inches)
TypeTitanium valves
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke82.0 x 57.3 mm (3.2 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. Mikuni D45 throttle body
IgnitionElectronic with adjustable advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchMulti plate, hydraulic operation
Driveline6 speed constant mesh

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.52 litres (2.25 gallons)
Emissions

Chassis

Frame TypeChromoly single-tube frame cradle utilizes rounded-rectangle elliptical tubing.
Rake26.5°
Trail106 mm (4.2 inches)
Front SuspensionKayaba 48mm closed-cartridge fork
Front Travel300 mm (11.8 inches)
Rear SuspensionKayaba Progressive ´Soft Damp´ hydraulic single shock
Rear Travel296 mm (11.7 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,176 mm (85.7 inches)
Total Width820 mm (32.3 inches)
Ground Clearance290 mm (11.4 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight109.1 kg (240.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TXC310. This Enduro / offroad model is powered by a Titanium valves Single cylinder, four-stroke engine with 302.40 ccm (18.45 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Mikuni D45 throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TXC310 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Chromoly single-tube frame cradle utilizes rounded-rectangle elliptical tubing.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna TXC310 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
