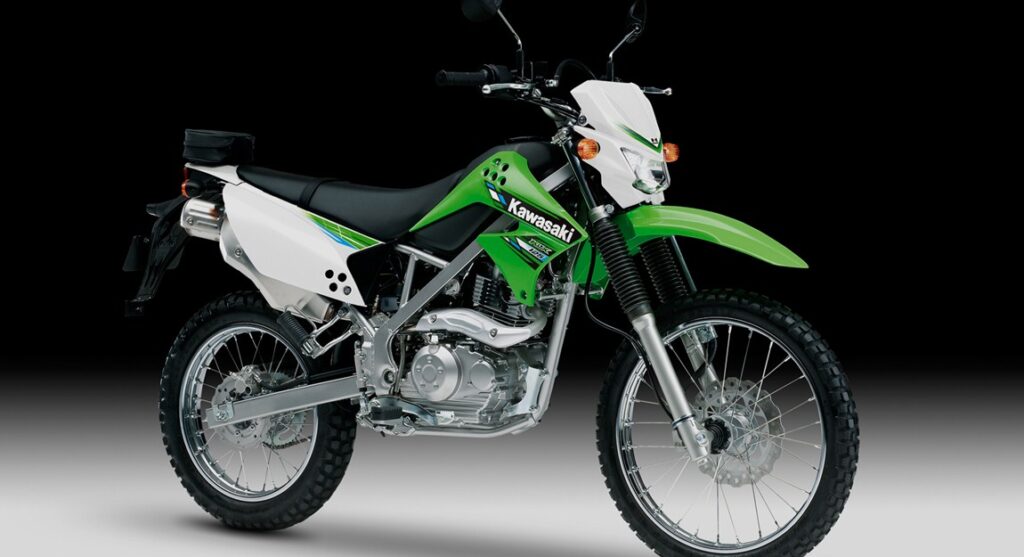

These are the known mechanical and performance specifications for your 2012 Kawasaki KLX 125.
Basic Specs
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke54.0 x 54.4 mm (2.1 x 2.1 inches)
Valves/Cylinder2
FuelingInjection. Fuel injection: ø20 mm x 1 (Keihin)
IgnitionDigital DC-CDI
Exhaust
LubricationForced lubrication, wet sump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multi-disc, manual
Driveline
Performance
Horespower10.19 HP (7.4 kW)
Torque10.00 Nm (1.0 kgf-m or 7.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame TypePerimeter, steel
Rake27.2°
Trail101 mm (4.0 inches)
Front Suspension33 mm telescopic fork
Front Travel175 mm (6.9 inches)
Rear SuspensionUni-Trak
Rear Travel180 mm (7.1 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length1,980 mm (78.0 inches)
Total Width770 mm (30.3 inches)
Ground Clearance255 mm (10.0 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight113.0 kg (249.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc. Twin-piston
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
Wheels
