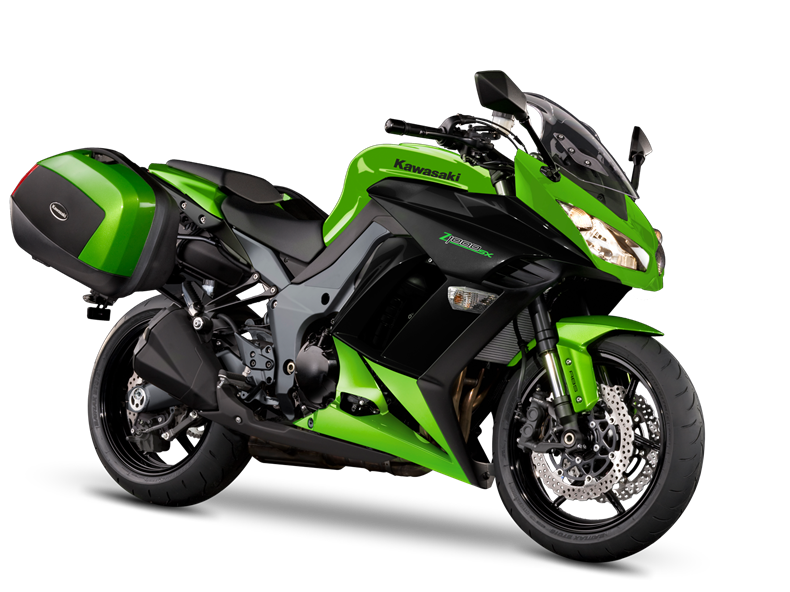

2012 Kawasaki Z1000 SX Tourer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Kawasaki Z1000 SX Tourer.

Basic Specs

Year2012
MakeKawasaki
ModelKawasaki Z1000 SX Tourer
Cost

Engine

Displacement1043.00 ccm (63.64 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke77.0 x 56.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. 38 mm x 4 (Keihin) with oval sub-throttles
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
Driveline

Performance

Horespower136.11 HP (99.4 kW)
Torque110.00 Nm (11.2 kgf-m or 81.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeAluminium twin-tube
Rake24.5°
Trail102 mm (4.0 inches)
Front Suspension41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability
Front Travel120 mm (4.7 inches)
Rear SuspensionHorizontal Back-link, gas-charged, with stepless rebound damping and cam-style spring preload adjustability
Rear Travel138 mm (5.4 inches)
Seat
Seat Height822 mm (32.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,170 mm (46.1 inches)
Total Length2,105 mm (82.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,445 mm (56.9 inches)
Dry Weight
Wet Weight228.0 kg (502.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Optional ABS.
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Z1000 SX Tourer. This Sport touring model is powered by a In-line four, four-stroke engine with 1043.00 ccm (63.64 cubic inches) of actual displacement before 11.8:1 compression. Fueling is metered via Injection. 38 mm x 4 (Keihin) with oval sub-throttles allowing this machine to produce its 136.11 HP (99.4 kW) horsepower and 110.00 Nm (11.2 kgf-m or 81.1 ft.lbs) torque. According to our records engine heat of the Kawasaki Z1000 SX Tourer is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Aluminium twin-tube . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS. front brakes and Single disc. Optional ABS. rear brakes. The Kawasaki Z1000 SX Tourer was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
