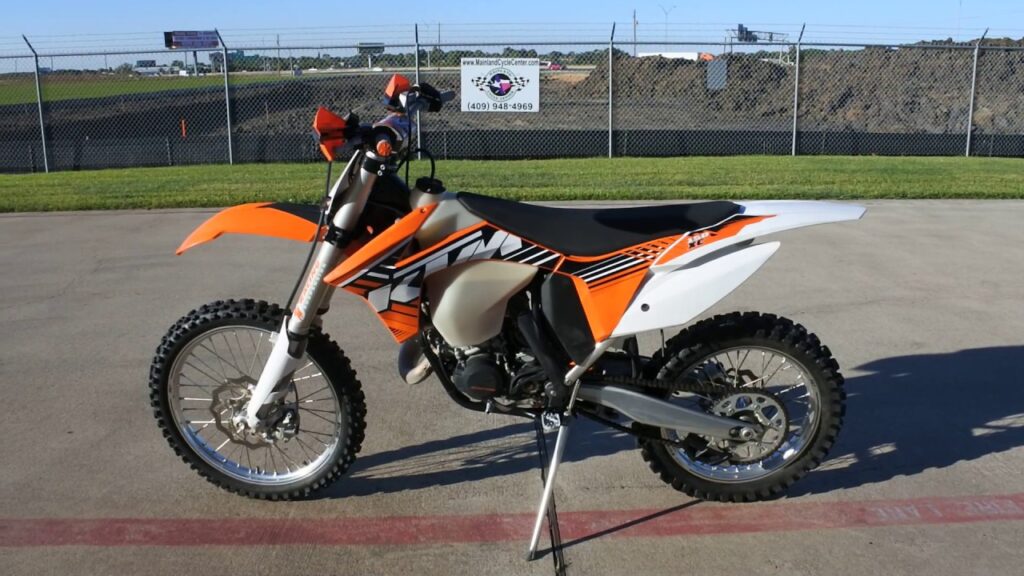

These are the known mechanical and performance specifications for your 2012 KTM 150 XC.
Basic Specs
Engine
Displacement143.60 ccm (8.76 cubic inches)
TypeReed intake and exhaust control
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke56.0 x 58.4 mm (2.2 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionContactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
Exhaust
LubricationMixture oil lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMultidisc clutch in oil bath/hydraulically activated
Driveline13:50. Primary drive: 23:73.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.50 litres (3.04 gallons)
Emissions
Chassis
Frame TypeCentral tube frame made of chrome molybdenum steel tubing
Rake26.5°
Trail
Front SuspensionWP Suspension Up Side Down 4860 MXMA CC
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Suspension 5018 BAVP DCC
Rear Travel317 mm (12.5 inches)
Seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance395 mm (15.6 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight94.2 kg (207.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
