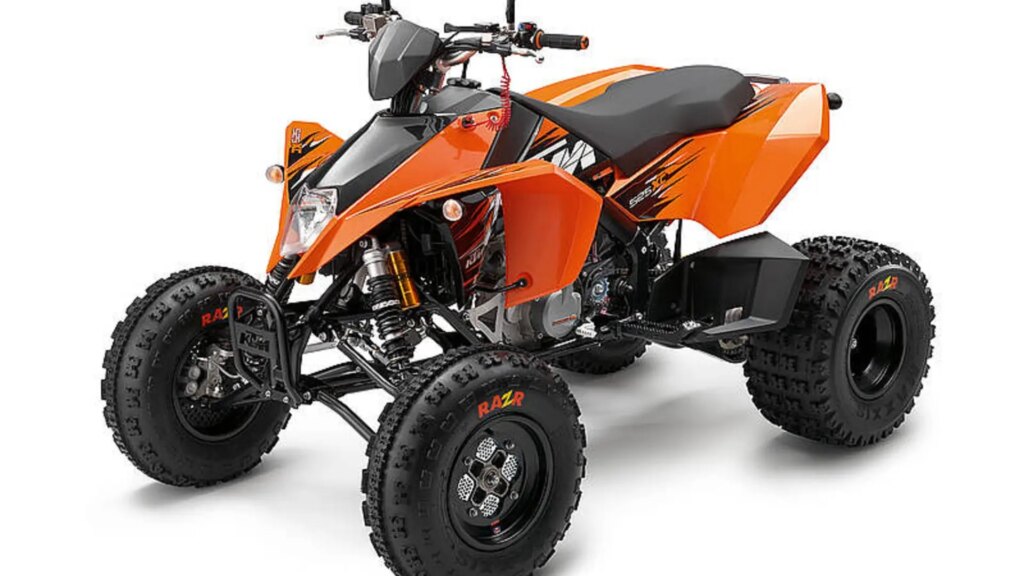

These are the known mechanical and performance specifications for your 2012 KTM 525 XC.
Basic Specs
Engine
Displacement510.40 ccm (31.14 cubic inches)
TypeEngine with balance
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin FCR MX 39
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan.
ExhaustAluminum XC
LubricationDry sump, pressure lubrication with 2 Eaton pumps
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multi disk clutch, operated hydraulically
DrivelinePrimary gear ratio 31:78 straight cut spur gear. Secondary gear ratio 14:38.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.40 litres (3.54 gallons)
Emissions
Chassis
Frame TypeDouble-cradle frame made from chrome-molybdenum steel tubing, powder-coated
Rake
Trail
Front SuspensionIndependent wheels suspension with double wishbone
Front Travel275 mm (10.8 inches)
Rear SuspensionRigid axle
Rear Travel272 mm (10.7 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight163.0 kg (359.4 pounds)
Wet Weight173.0 kg (381.4 pounds)
Wheels & Brakes
Front Tire/Tyre21/7-10
Rear Tire/Tyre20/11-9
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesSingle disc. Single piston floating caliper
Rear Brake Diameter200 mm (7.9 inches)
Wheels
