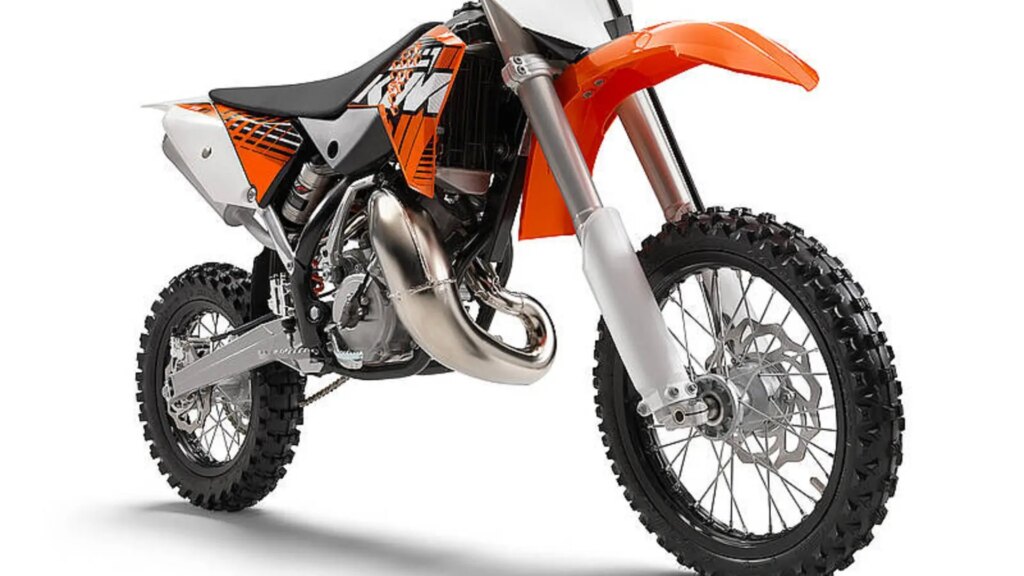

2012 KTM 65 SX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 KTM 65 SX.

Basic Specs

Year2012
MakeKTM
ModelKTM 65 SX
Cost

Engine

Displacement64.90 ccm (3.96 cubic inches)
TypeReed intake and exhaust control
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke45.0 x 40.8 mm (1.8 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TM 24
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
ExhaustAluminium
LubricationMixture oil lubrication 1:60
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet mDouble disk clutch, operated hydraulically
Driveline14:48 Primary. 23:75 straight cut spur gear.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.50 litres (0.92 gallons)
Emissions

Chassis

Frame TypeCentral tube frame of chrome molybdenum steel tubing, powder-coated
Rake25.5°
Trail
Front SuspensionWP Suspension USD 35
Front Travel215 mm (8.5 inches)
Rear SuspensionWP Suspension 3614 BAVP
Rear Travel270 mm (10.6 inches)
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance280 mm (11.0 inches)
Wheelbase1,137 mm (44.8 inches)
Dry Weight55.4 kg (122.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre60/100-14
Rear Tire/Tyre80/100-12
Front BrakesSingle disc
Front Brake Diameter198 mm (7.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter160 mm (6.3 inches)
Wheels1.6 x 14in., 1.6 x 12in. Alu

Comments

It appears you're interested in specifications for the KTM 65 SX. This Minibike, cross model is powered by a Reed intake and exhaust control Single cylinder, two-stroke engine with 64.90 ccm (3.96 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Mikuni TM 24 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 65 SX is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 60/100-14 and the rear is 80/100-12 . The entire package is supported by the frame, Central tube frame of chrome molybdenum steel tubing, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 65 SX was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
