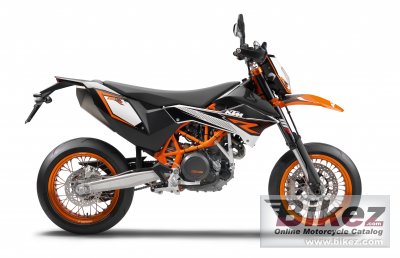

These are the known mechanical and performance specifications for your 2012 KTM 690 SMC R.
Basic Specs
Engine
Displacement690.00 ccm (42.10 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke102.0 x 84.5 mm (4.0 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Exhaust
LubricationSemi-dry-sump lubrication with 2 rotor pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchAPTC Anti-hopping clutch / hydraulically operated
Driveline16:42. Primary drive: 36:79.
Performance
Horespower66.00 HP (48.2 kW)
Torque64.00 Nm (6.5 kgf-m or 47.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions
Chassis
Frame TypeTubular space frame made from chrome molybdenum steel, powder-coated
Rake27.0°
Trail112 mm (4.4 inches)
Front SuspensionWP Suspension Up Side Down 4860 ROMA
Front Travel250 mm (9.8 inches)
Rear SuspensionWP Suspension 4618 with Pro and #8209;Lever linkage
Rear Travel250 mm (9.8 inches)
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance270 mm (10.6 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight142.0 kg (313.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
