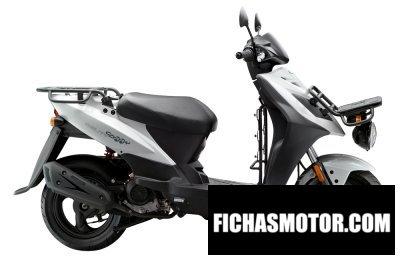

These are the known mechanical and performance specifications for your 2012 Kymco Agility Carry.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineCVT automatic
Performance
Horespower2.60 HP (1.9 kW)
Torque3.43 Nm (0.3 kgf-m or 2.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption2.70 litres/100 km (37.0 km/l or 87.12 mpg)
Fuel Capacity5.00 litres (1.32 gallons)
Emissions62.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle shock
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length1,925 mm (75.8 inches)
Total Width685 mm (27.0 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight105.5 kg (232.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels
Comments
Kymco is made by Kwang Yang Motor Company, Taiwan.
