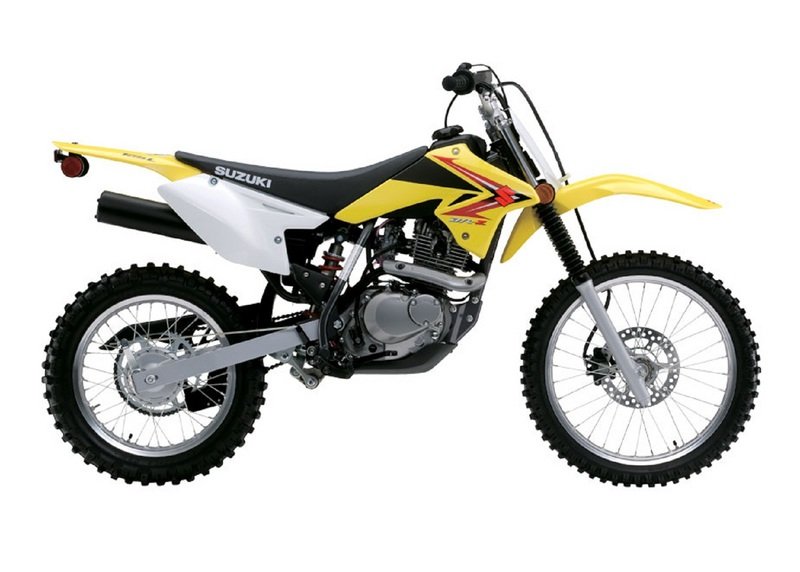

These are the known mechanical and performance specifications for your 2012 Suzuki DR-Z125.
Basic Specs
Year2012
MakeSuzuki
ModelSuzuki DR-Z125
TypeEnduro / offroad
CostUS$ 2999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni VM20SS
IgnitionDigital-type CDI
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
Clutch
DrivelineD.I.D 428HG, 130 links
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.80 litres (1.27 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,885 mm (74.2 inches)
Total Width
Ground Clearance270 mm (10.6 inches)
Wheelbase
Dry Weight
Wet Weight73.0 kg (160.9 pounds)
Wheels & Brakes
Front Tire/Tyre70/100-17
Rear Tire/Tyre90/100-14
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
