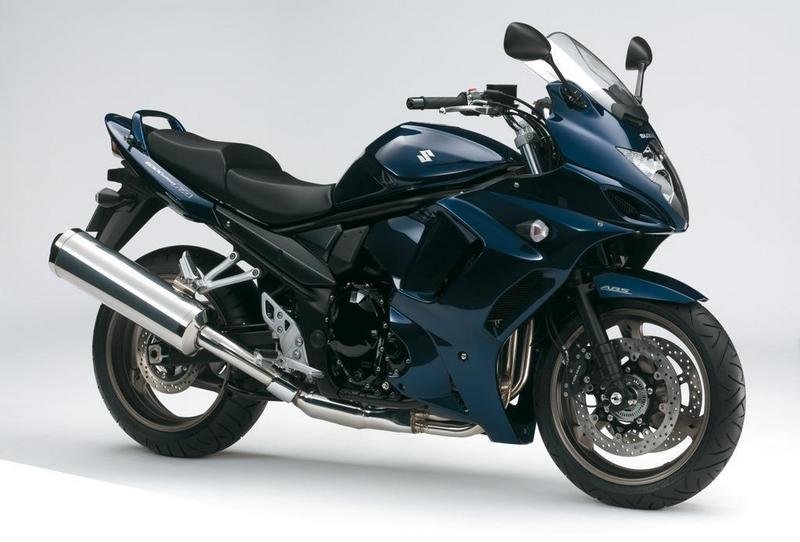

2012 Suzuki GSX1250FA Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Suzuki GSX1250FA.

Basic Specs

Year2012
MakeSuzuki
ModelSuzuki GSX1250FA
TypeSport
CostUS$ 11599. UK £ 7865. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1250.00 ccm (76.28 cubic inches)
TypeLong-wearing, tough SCEM (Suzuki Composite Electrochemical Material) cylinder-bore plating offers increased durability and efficiency. Chrome-nitride piston-ring coating.
DetailsIn-line four, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke79.0 x 64.0 mm (3.1 x 2.5 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition (Transistorized)
Exhaust
LubricationWet sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchHydraulic clutch with coil springs
DrivelineRK GB50GSVZ3, 118 links

Performance

Horespower96.55 HP (70.5 kW)
Torque108.00 Nm (11.0 kgf-m or 79.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.50 litres (4.89 gallons)
Emissions

Chassis

Frame TypeClassic tube-frame chassis, with rake and trail chosen for an excellent balance between sporty handling and highway cruising.
Rake25.6°
Trail104 mm (4.1 inches)
Front SuspensionTelescopic, coil spring, oil damped
Front Travel130 mm (5.1 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Travel136 mm (5.4 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height825 mm (32.5 inches) If adjustable, highest setting.
Total Height
Total Length2,130 mm (83.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight
Wet Weight257.0 kg (566.6 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Digital ABS
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Digital ABS
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki GSX1250FA. This Sport model is powered by a Long-wearing, tough SCEM (Suzuki Composite Electrochemical Material) cylinder-bore plating offers increased durability and efficiency. Chrome-nitride piston-ring coating. In-line four, four-stroke engine with 1250.00 ccm (76.28 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 96.55 HP (70.5 kW) horsepower and 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) torque. According to our records engine heat of the Suzuki GSX1250FA is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Classic tube-frame chassis, with rake and trail chosen for an excellent balance between sporty handling and highway cruising.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Digital ABS front brakes and Single disc. Digital ABS rear brakes. The Suzuki GSX1250FA was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
