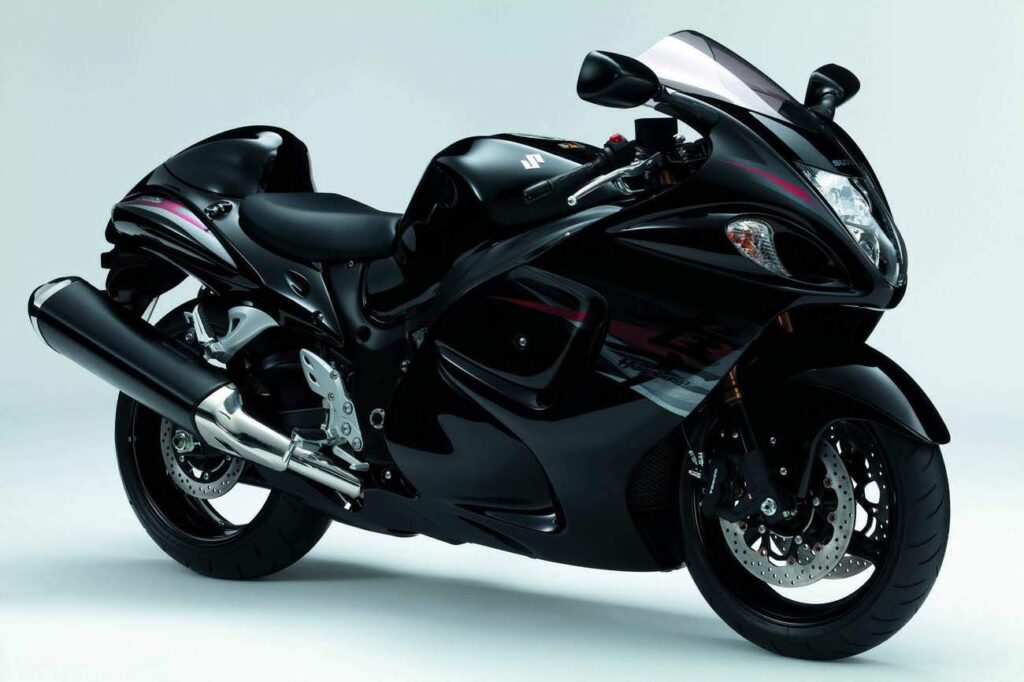

2012 Suzuki Hayabusa GSX1300R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Suzuki Hayabusa GSX1300R .

Basic Specs

Year2012
MakeSuzuki
ModelSuzuki Hayabusa GSX1300R
TypeSport
CostUS$ 13999. UK £ 10935. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1340.00 ccm (81.77 cubic inches)
TypeU-shaped cutouts in the cylinder-bore sides allow air below descending pistons to escape to adjacent cylinders to reduce internal pumping pressure and mechanical power losses. Titanium valves.
DetailsIn-line four, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke96.0 x 101.0 mm (3.8 x 4.0 inches)
Valves/Cylinder4
FuelingInjection. Two 12-hole fine-spray injectors on each throttle body
IgnitionElectronic ignition (transistorized)
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineChain, RK GB50GSV Z4, 114 links

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.00 litres (5.55 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,190 mm (86.2 inches)
Total Width735 mm (28.9 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight
Wet Weight260.0 kg (573.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki Hayabusa GSX1300R . This Sport model is powered by a U-shaped cutouts in the cylinder-bore sides allow air below descending pistons to escape to adjacent cylinders to reduce internal pumping pressure and mechanical power losses. Titanium valves. In-line four, four-stroke engine with 1340.00 ccm (81.77 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. Two 12-hole fine-spray injectors on each throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Hayabusa GSX1300R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki Hayabusa GSX1300R was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Suzuki Drive Mode Selector (S-DMS) enables the rider to choose from threedifferent engine power characteristics according to personal preference.
