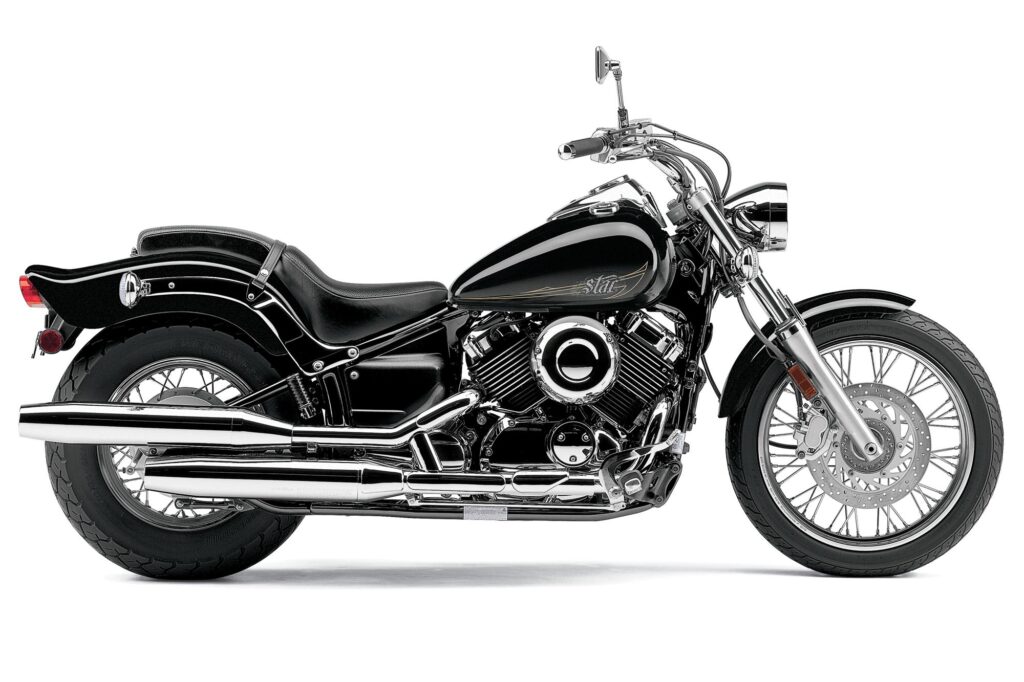

These are the known mechanical and performance specifications for your 2012 Yamaha V Star Custom.
Basic Specs
Year2012
MakeYamaha
ModelYamaha V Star Custom
TypeCustom / cruiser
CostUS$ 6890. Prices depend on country, taxes, accessories, etc.
Engine
Displacement655.52 ccm (40.00 cubic inches)
Type70° V twin. Forged aluminum pistons.
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke81.0 x 63.0 mm (3.2 x 2.5 inches)
Valves/Cylinder2
Fueling
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchMultiplate wet
Driveline
Fuel Economy & Polution
Fuel Consumption4.81 litres/100 km (20.8 km/l or 48.90 mpg)
Fuel Capacity15.90 litres (4.20 gallons)
Emissions111.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSteel; hidden shock
Rake32.0°
Trail102 mm (4.0 inches)
Front Suspension41mm telescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSingle shock
Rear Travel86 mm (3.4 inches)
Seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,067 mm (42.0 inches)
Total Length2,337 mm (92.0 inches)
Total Width879 mm (34.6 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,610 mm (63.4 inches)
Dry Weight
Wet Weight232.7 kg (513.0 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre170/80-15
Front BrakesSingle disc. Hydraulic
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesExpanding brake (drum brake). Hydraulic
Rear Brake Diameter200 mm (7.9 inches)
WheelsSpoke
