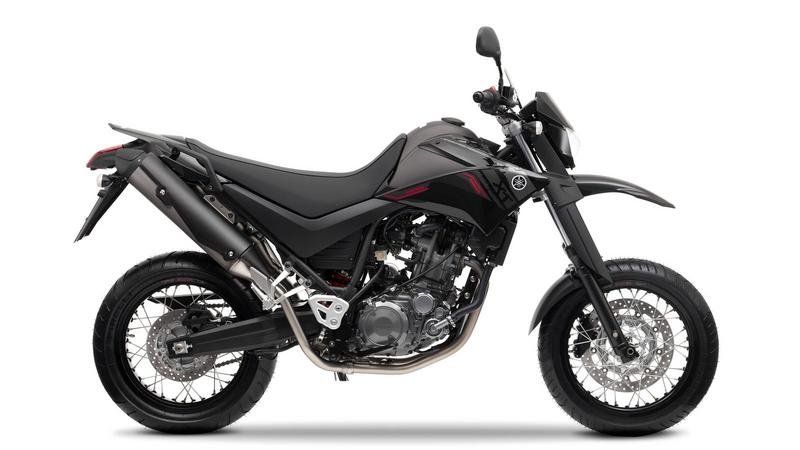

These are the known mechanical and performance specifications for your 2012 Yamaha XT660X.
Basic Specs
Engine
Displacement660.00 ccm (40.27 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 84.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI
Exhaust
LubricationDry sump
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet, multiple-disc coil spring
DrivelineConstant Mesh, 5-speed
Performance
Horespower47.34 HP (34.6 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeSteel tube, diamond shaped
Rake26.0°
Trail94 mm (3.7 inches)
Front SuspensionTelescopic forks
Front Travel200 mm (7.9 inches)
Rear SuspensionSwingarm (monocross)
Rear Travel200 mm (7.9 inches)
Seat
Seat Height865 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,170 mm (46.1 inches)
Total Length2,175 mm (85.6 inches)
Total Width860 mm (33.9 inches)
Ground Clearance205 mm (8.1 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight
Wet Weight181.0 kg (399.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-R17
Rear Tire/Tyre160/60-R17
Front BrakesSingle disc. Hydraulic
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter245 mm (9.6 inches)
WheelsAluminium rims
