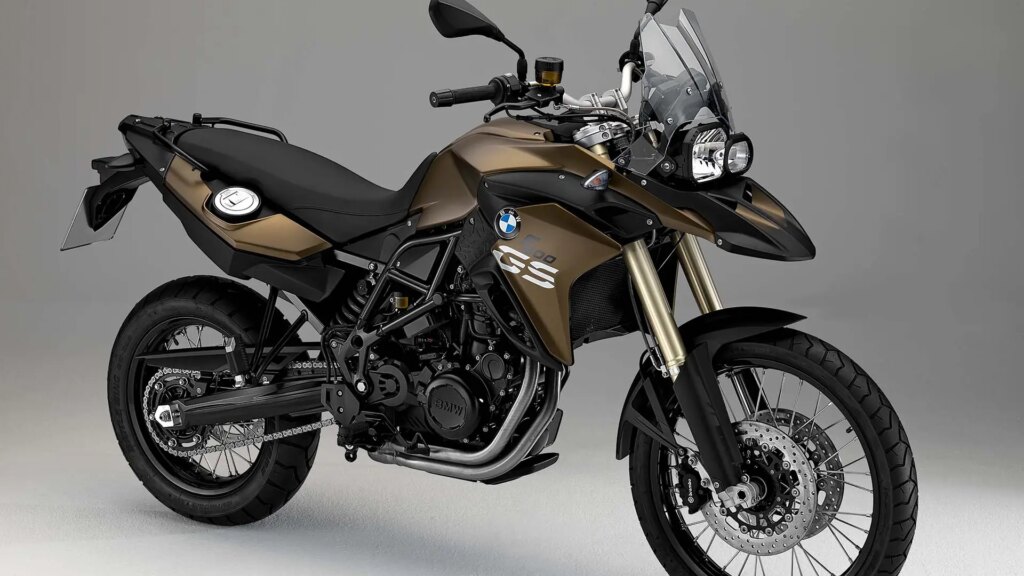

2013 BMW F 800 GS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 BMW F 800 GS.

Basic Specs

Year2013
MakeBMW
ModelBMW F 800 GS
CostUS$ 12090. Prices depend on country, taxes, accessories, etc.

Engine

Displacement798.00 ccm (48.69 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke82.0 x 75.6 mm (3.2 x 3.0 inches)
Valves/Cylinder2
FuelingInjection. Electroinc intake pipe injection, digital engine management (BMS-K+)
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultiple-disc clutch in oil bath, mechanically operated
DrivelineEndless O-ring chain with shock damping in rear wheel hub

Performance

Horespower84.48 HP (61.7 kW)
Torque61.00 Nm (6.2 kgf-m or 45.0 ft.lbs)
Top Speed241.4 km/h (150.0 mph)

Fuel Economy & Polution

Fuel Consumption3.79 litres/100 km (26.4 km/l or 62.06 mpg)
Fuel Capacity15.90 litres (4.20 gallons)
Emissions87.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel space frame, load-bearing engine
Rake26.0°
Trail117 mm (4.6 inches)
Front SuspensionUpside-down telescopic fork, 45 mm
Front Travel231 mm (9.1 inches)
Rear SuspensionCast aluminium dual swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Rear Travel216 mm (8.5 inches)
Seat
Seat Height879 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,351 mm (53.2 inches)
Total Length2,319 mm (91.3 inches)
Total Width945 mm (37.2 inches)
Ground Clearance
Wheelbase1,577 mm (62.1 inches)
Dry Weight191.0 kg (421.0 pounds)
Wet Weight214.1 kg (472.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. ABS. Floating discs. Two-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter265 mm (10.4 inches)
WheelsWire spoke wheels

Comments

It appears you're interested in specifications for the BMW F 800 GS. This Enduro / offroad model is powered by a Twin, four-stroke engine with 798.00 ccm (48.69 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electroinc intake pipe injection, digital engine management (BMS-K+) allowing this machine to produce its 84.48 HP (61.7 kW) horsepower and 61.00 Nm (6.2 kgf-m or 45.0 ft.lbs) torque. According to our records engine heat of the BMW F 800 GS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/70-17 . The entire package is supported by the frame, Tubular steel space frame, load-bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Two-piston calipers. front brakes and Single disc. ABS. Floating disc. Single-piston caliper. rear brakes. The BMW F 800 GS was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
