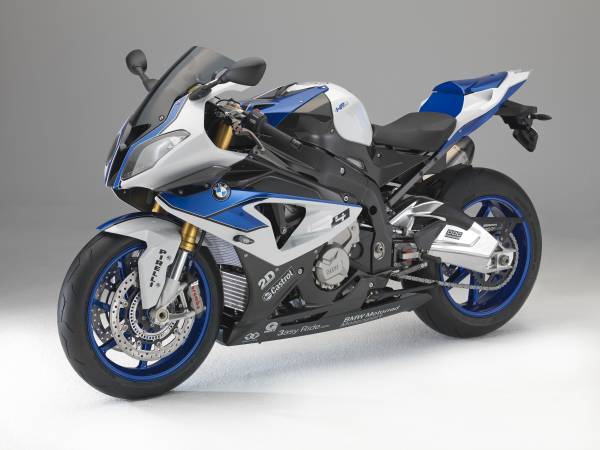

2013 BMW HP4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 BMW HP4.

Basic Specs

Year2013
MakeBMW
ModelBMW HP4
TypeSport
CostUS$ 20525. Prices depend on country, taxes, accessories, etc.

Engine

Displacement999.00 ccm (60.96 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke80.0 x 49.7 mm (3.1 x 2.0 inches)
Valves/Cylinder
FuelingInjection. Electroinc injection, digital engine electronics with integrated knock control (BMS-KP)
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multidisc anti-hopping clutch, mechanically operated
Driveline17/45 chain; Shift Assistant: clutchless upshifting under acceleration; Launch Control: Launch control for race starts

Performance

Horespower193.00 HP (140.9 kW)
Torque83.00 Nm (8.5 kgf-m or 61.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Fuel Capacity17.41 litres (4.60 gallons)
Emissions132.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminium composite bridge frame, partially self-supporting
Rake24.0°
Trail99 mm (3.9 inches)
Front SuspensionUpside down telescopic fork 46 mm, dynamic damping control DDC, adjustable spring preload, electronically adjustable damping
Front Travel119 mm (4.7 inches)
Rear SuspensionAluminium dual swing arm, dynamic damping control DDC (central spring strut), hydraulically adjustable spring preload, adjustable compression and rebound damping
Rear Travel130 mm (5.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,138 mm (44.8 inches)
Total Length2,055 mm (80.9 inches)
Total Width826 mm (32.5 inches)
Ground Clearance
Wheelbase1,422 mm (56.0 inches)
Dry Weight169.2 kg (373.0 pounds)
Wet Weight199.1 kg (439.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre200/55-17
Front BrakesDouble disc. Floating discs. Four-piston calipers. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating disc. Single-piston caliper. ABS.
Rear Brake Diameter220 mm (8.7 inches)
WheelsForged aluminium wheels

Comments

It appears you're interested in specifications for the BMW HP4. This Sport model is powered by a In-line four, four-stroke engine with 999.00 ccm (60.96 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electroinc injection, digital engine electronics with integrated knock control (BMS-KP) allowing this machine to produce its 193.00 HP (140.9 kW) horsepower and 83.00 Nm (8.5 kgf-m or 61.2 ft.lbs) torque. According to our records engine heat of the BMW HP4 is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 200/55-17 . The entire package is supported by the frame, Aluminium composite bridge frame, partially self-supporting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. Four-piston calipers. ABS. front brakes and Single disc. Floating disc. Single-piston caliper. ABS. rear brakes. The BMW HP4 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
