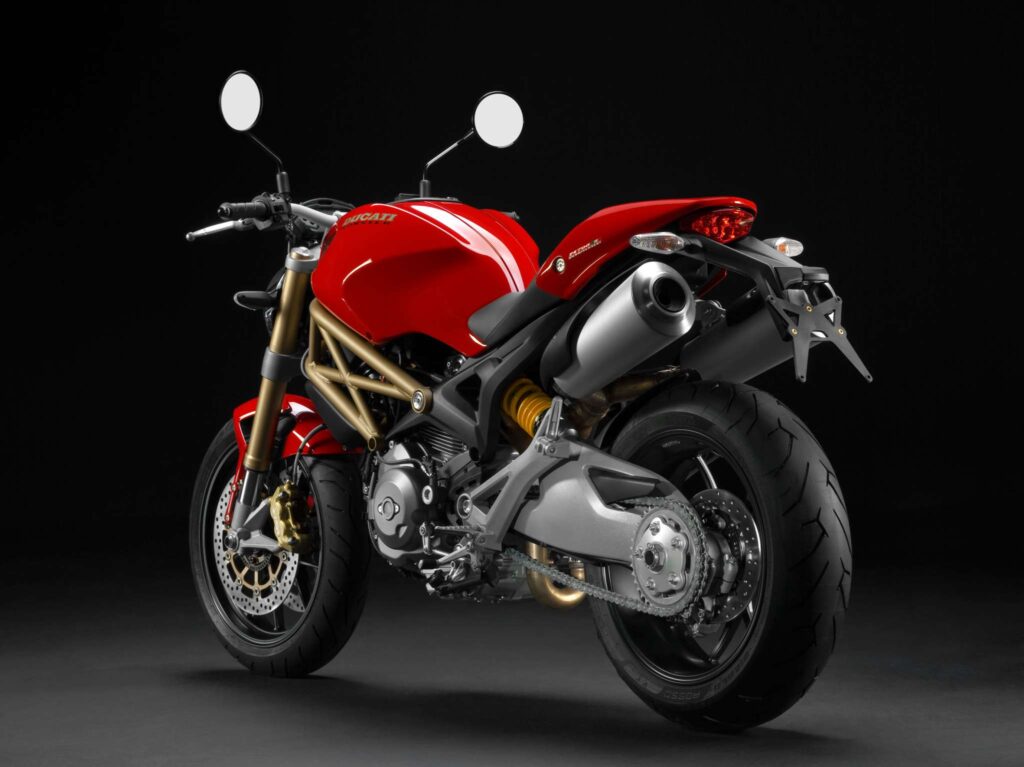

2013 Ducati Monster 796 20th Anniversary Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Ducati Monster 796 20th Anniversary.

Basic Specs

ModelDucati Monster 796 20th Anniversary


Displacement803.00 ccm (49.00 cubic inches)
DetailsV2, four-stroke
Bore/Stroke88.0 x 66.0 mm (3.5 x 2.6 inches)
FuelingInjection. Siemens electronic fuel injection, 45mm throttle body
ExhaustLightweight 2-1-2 system with catalytic converter with twin lambda probes


Final DriveChain
ClutchAPTC wet multiplate with hydraulic control
DrivelineChain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.85.


Horespower85.83 HP (62.6 kW)
Torque78.00 Nm (8.0 kgf-m or 57.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)


Frame TypeTubular steel Trellis frame
Trail87 mm (3.4 inches)
Front Suspension43mm upside-down forks
Front Travel
Rear SuspensionProgressive linkage with preload and rebound Sachs adjustable monoshock
Rear Travel
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight167.0 kg (368.2 pounds)
Wet Weight187.0 kg (412.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Four-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
WheelsY-shaped, 5-spoke in light alloy


It appears you're interested in specifications for the Ducati Monster 796 20th Anniversary. This Naked bike model is powered by a V2, four-stroke engine with 803.00 ccm (49.00 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Siemens electronic fuel injection, 45mm throttle body allowing this machine to produce its 85.83 HP (62.6 kW) horsepower and 78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) torque. According to our records engine heat of the Ducati Monster 796 20th Anniversary is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Four-piston calipers. front brakes and Single disc. Two-piston calipers. rear brakes. The Ducati Monster 796 20th Anniversary was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
