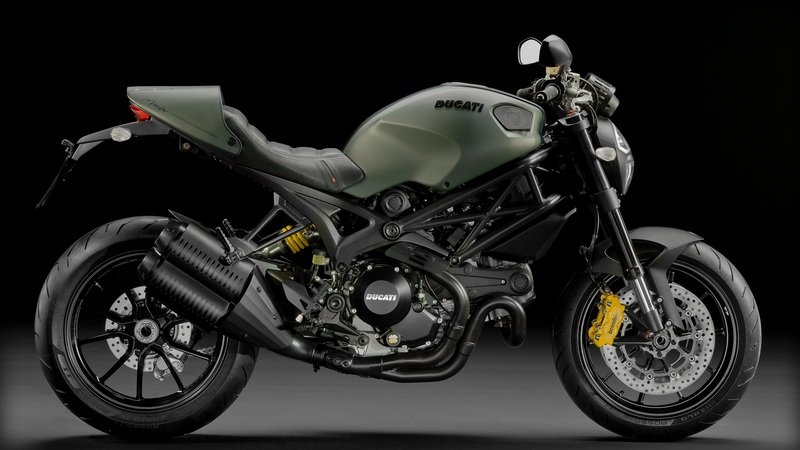

2013 Ducati Monster Diesel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Ducati Monster Diesel.

Basic Specs

Year2013
MakeDucati
ModelDucati Monster Diesel
Cost

Engine

Displacement1078.00 ccm (65.78 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Siemens electronic fuel injection, 45mm throttle body
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate with hydraulic control
DrivelineChain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.84.

Performance

Horespower98.57 HP (71.9 kW)
Torque103.00 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake24.0°
Trail87 mm (3.4 inches)
Front SuspensionMarzocchi 43mm fully adjustable usd forks
Front Travel
Rear SuspensionProgressive with preload and rebound Sachs adjustable monoshock
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight169.0 kg (372.6 pounds)
Wet Weight187.0 kg (412.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Four-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels10-spoke in light alloy

Comments

It appears you're interested in specifications for the Ducati Monster Diesel. This Naked bike model is powered by a V2, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection. Siemens electronic fuel injection, 45mm throttle body allowing this machine to produce its 98.57 HP (71.9 kW) horsepower and 103.00 Nm (10.5 kgf-m or 76.0 ft.lbs) torque. According to our records engine heat of the Ducati Monster Diesel is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Four-piston calipers. front brakes and Single disc. ABS. Two-piston calipers. rear brakes. The Ducati Monster Diesel was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
