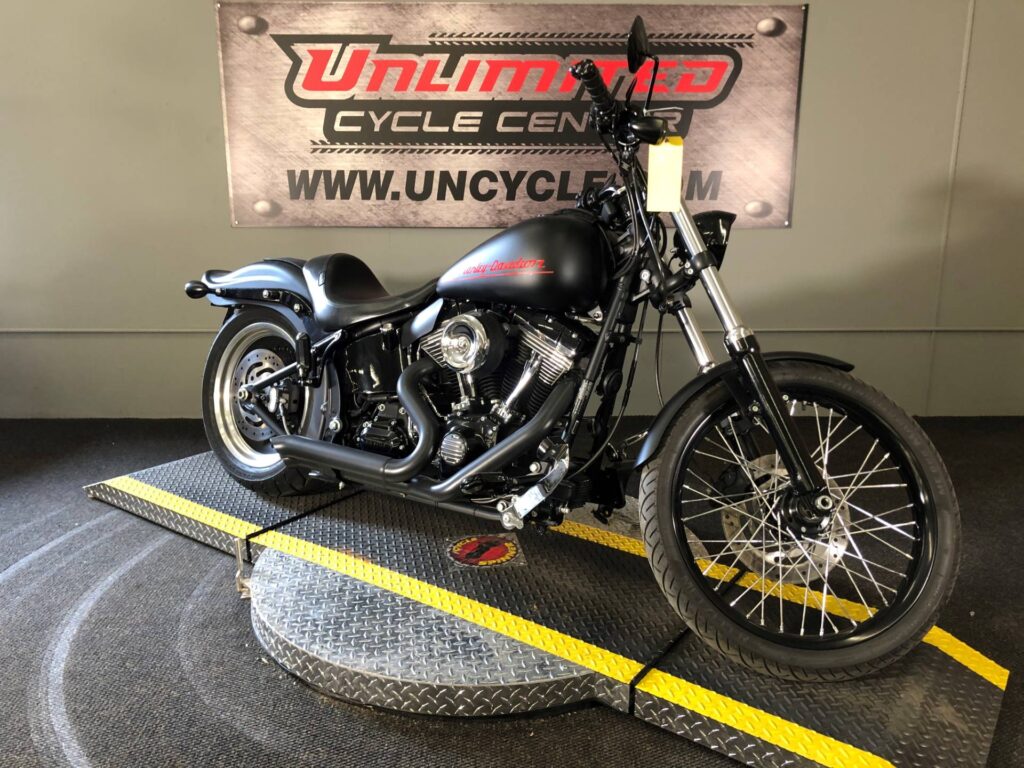

2013 Harley-Davidson Softail Blackline Dark Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Softail Blackline Dark Custom.

Basic Specs

Year2013
MakeHarley-Davidson
ModelHarley-Davidson Softail Blackline Dark Custom
CostUS$ 15599. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103B™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, over/under shotgun exhaust with slash-cut mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque133.84 Nm (13.6 kgf-m or 98.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.93 litres (5.00 gallons)
Emissions

Chassis

Frame Type
Rake30.0°
Trail122 mm (4.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height610 mm (24.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,362 mm (93.0 inches)
Total Width
Ground Clearance133 mm (5.3 inches)
Wheelbase
Dry Weight293.9 kg (648.0 pounds)
Wet Weight306.2 kg (675.0 pounds)

Wheels & Brakes

Front Tire/TyreMH90-21
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack Anodized, Profile Laced Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Softail Blackline Dark Custom. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 103B™ V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Softail Blackline Dark Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MH90-21 and the rear is 200/55-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson Softail Blackline Dark Custom was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
