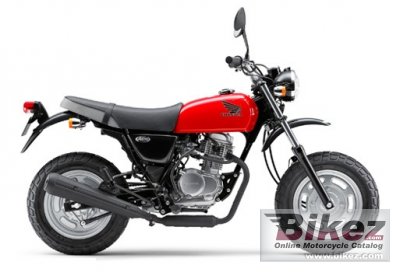

These are the known mechanical and performance specifications for your 2013 Honda Ape 100.
Basic Specs
Engine
Displacement99.00 ccm (6.04 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke53.0 x 45.0 mm (2.1 x 1.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaustcatalyst exhaust pipe
Lubrication
CoolingAir
Performance
Horespower6.17 HP (4.5 kW)
Torque6.60 Nm (0.7 kgf-m or 4.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions
Chassis
Frame TypeDiamond
Rake
Trail89 mm (3.5 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm (Pro-link)
Rear Travel
Seat
Seat Height715 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,155 mm (45.5 inches)
Total Length1,715 mm (67.5 inches)
Total Width770 mm (30.3 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,190 mm (46.9 inches)
Dry Weight
Wet Weight90.0 kg (198.4 pounds)
Wheels & Brakes
Front Tire/Tyre120/80-12
Rear Tire/Tyre120/80-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Sold in some Asian countries.
