2013 Honda CBF Stunner Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda CBF Stunner.

Basic Specs

Year2013
MakeHonda
ModelHonda CBF Stunner
TypeSport
Cost

Engine

Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingInjection. PGM-FI. Optional carburettor.
IgnitionFull Transistorized
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower11.60 HP (8.5 kW)
Torque11.20 Nm (1.1 kgf-m or 8.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame TypeDiamond
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionHydraulic, 3 step adjustable
Rear Travel
SeatSplit seat
Seat Height
Alt. Seat Height
Total Height
Total Length2,012 mm (79.2 inches)
Total Width
Ground Clearance
Wheelbase1,271 mm (50.0 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-17
Rear Tire/Tyre100/90-17
Front BrakesDouble disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

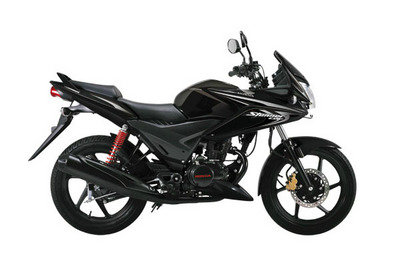

It appears you're interested in specifications for the Honda CBF Stunner. This Sport model is powered by a Single cylinder, four-stroke engine with 124.70 ccm (7.61 cubic inches) of actual displacement before compression. Fueling is metered via Injection. PGM-FI. Optional carburettor. allowing this machine to produce its 11.60 HP (8.5 kW) horsepower and 11.20 Nm (1.1 kgf-m or 8.3 ft.lbs) torque. According to our records engine heat of the Honda CBF Stunner is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-17 and the rear is 100/90-17 . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CBF Stunner was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in India.
