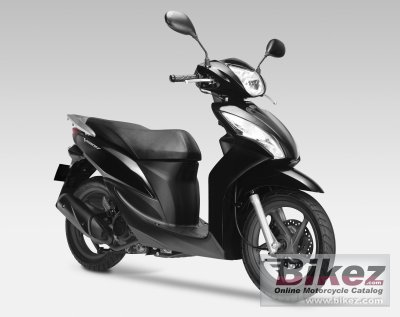

2013 Honda NSC110 Vision Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda NSC110 Vision.

Basic Specs

Year2013
MakeHonda
ModelHonda NSC110 Vision
Cost

Engine

Displacement108.00 ccm (6.59 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke50.0 x 55.0 mm (2.0 x 2.2 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineV-matic

Performance

Horespower8.31 HP (6.1 kW)
Torque8.70 Nm (0.9 kgf-m or 6.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic forks with hydraulic damping
Front Travel70 mm (2.8 inches)
Rear SuspensionUnit swingarm
Rear Travel80 mm (3.1 inches)
Seat2-person seat
Seat Height
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length1,845 mm (72.6 inches)
Total Width670 mm (26.4 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,255 mm (49.4 inches)
Dry Weight102.0 kg (224.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-14
Rear Tire/Tyre90/90-14
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels5-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda NSC110 Vision. This Scooter model is powered by a Single cylinder, four-stroke engine with 108.00 ccm (6.59 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its 8.31 HP (6.1 kW) horsepower and 8.70 Nm (0.9 kgf-m or 6.4 ft.lbs) torque. According to our records engine heat of the Honda NSC110 Vision is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 80/90-14 and the rear is 90/90-14 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda NSC110 Vision was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
