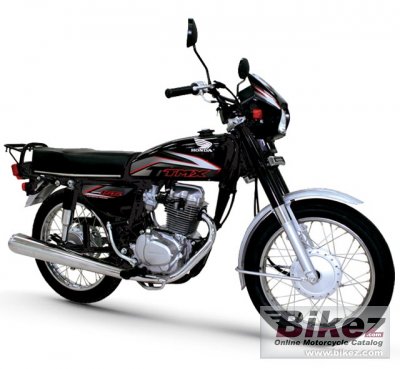

2013 Honda TMX 155 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda TMX 155.

Basic Specs

Year2013
MakeHonda
ModelHonda TMX 155
Cost

Engine

Displacement155.30 ccm (9.48 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke58.5 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionAC-CDI (Capacitor Discharge Ignition)
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower12.46 HP (9.1 kW)
Torque12.10 Nm (1.2 kgf-m or 8.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic Fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height743 mm (29.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,032 mm (40.6 inches)
Total Length1,915 mm (75.4 inches)
Total Width735 mm (28.9 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,201 mm (47.3 inches)
Dry Weight108.3 kg (238.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.00-17
Rear Tire/Tyre3.00-17
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsSpoke

Comments

It appears you're interested in specifications for the Honda TMX 155. This Allround model is powered by a Single cylinder, four-stroke engine with 155.30 ccm (9.48 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 12.46 HP (9.1 kW) horsepower and 12.10 Nm (1.2 kgf-m or 8.9 ft.lbs) torque. According to our records engine heat of the Honda TMX 155 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.00-17 and the rear is 3.00-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda TMX 155 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in some Asian contries.
