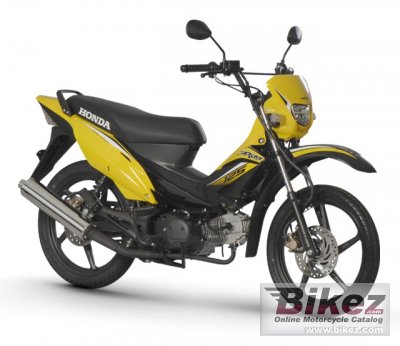

2013 Honda XRM 125 Motard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Honda XRM 125 Motard.

Basic Specs

Year2013
MakeHonda
ModelHonda XRM 125 Motard
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDC-CDI (Capacitor Discharge Ignition)
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower9.40 HP (6.9 kW)
Torque10.40 Nm (1.1 kgf-m or 7.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.80 litres (1.00 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,028 mm (40.5 inches)
Total Length1,893 mm (74.5 inches)
Total Width796 mm (31.3 inches)
Ground Clearance136 mm (5.4 inches)
Wheelbase1,239 mm (48.8 inches)
Dry Weight101.0 kg (222.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-17
Rear Tire/Tyre2.50-17
Front BrakesSingle disc. Hydraulic, ventilated
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic, ventilated
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda XRM 125 Motard. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 9.40 HP (6.9 kW) horsepower and 10.40 Nm (1.1 kgf-m or 7.7 ft.lbs) torque. According to our records engine heat of the Honda XRM 125 Motard is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 2.50-17 and the rear is 2.50-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic, ventilated front brakes and Single disc. Hydraulic, ventilated rear brakes. The Honda XRM 125 Motard was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Cub sold in some Asian countries.
