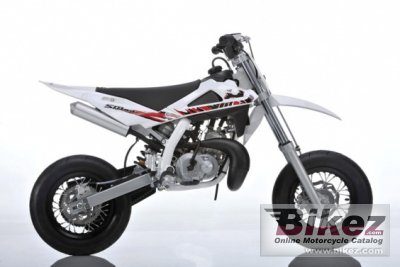

These are the known mechanical and performance specifications for your 2013 Husqvarna SM50.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.1:1
Bore/Stroke39.5 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBG 19
IgnitionElectronic C.D.I.
Exhaust
LubricationPremix 50 : 1
CoolingLiquid
Drivetrain
Gearbox
Final DriveChain
ClutchDry, centrifugal type
DrivelineSingle speed, chain final drive
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.70 litres (0.71 gallons)
Emissions
Chassis
Frame TypeSteel single tube, steel rear frame
Rake
Trail
Front SuspensionMarzocchi Upside-Down telescopic hydraulic fork with advanced axle
Front Travel185 mm (7.3 inches)
Rear SuspensionSachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment
Rear Travel200 mm (7.9 inches)
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height880 mm (34.6 inches)
Total Length1,400 mm (55.1 inches)
Total Width655 mm (25.8 inches)
Ground Clearance250 mm (9.8 inches)
Wheelbase995 mm (39.2 inches)
Dry Weight43.4 kg (95.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-10
Rear Tire/Tyre90/90-10
Front BrakesSingle disc. Fixed disc and caliper with hydraulic control
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc. Fixed disc and caliper with hydraulic control
Rear Brake Diameter140 mm (5.5 inches)
Wheels
