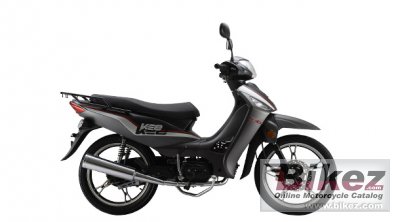

These are the known mechanical and performance specifications for your 2013 Keeway Kee 100.

Basic Specs

Year2013
MakeKeeway
ModelKeeway Kee 100
Cost

Engine

Displacement97.00 ccm (5.92 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.6:1
Bore/Stroke50.0 x 49.5 mm (2.0 x 1.9 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionC.D.I
Exhaust
LubricationPressure splash lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet, multiple-plate
DrivelineChassis

Performance

Horespower6.57 HP (4.8 kW)
Torque6.80 Nm (0.7 kgf-m or 5.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.80 litres (1.27 gallons)
Emissions

Chassis

Frame TypeChine type
Rake
Trail
Front SuspensionTelescopic forks
Front Travel98 mm (3.9 inches)
Rear SuspensionTelescopic coil spring oil damped
Rear Travel78 mm (3.1 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,110 mm (43.7 inches)
Total Length1,950 mm (76.8 inches)
Total Width720 mm (28.3 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,240 mm (48.8 inches)
Dry Weight103.0 kg (227.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-17
Rear Tire/Tyre2.75-17
Front BrakesSingle disc
Front Brake Diameter217 mm (8.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels5-spoke rims

Comments

It appears you're interested in specifications for the Keeway Kee 100. This Scooter model is powered by a Single cylinder, four-stroke engine with 97.00 ccm (5.92 cubic inches) of actual displacement before 8.6:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 6.57 HP (4.8 kW) horsepower and 6.80 Nm (0.7 kgf-m or 5.0 ft.lbs) torque. According to our records engine heat of the Keeway Kee 100 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-17 and the rear is 2.75-17 . The entire package is supported by the frame, Chine type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Keeway Kee 100 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
