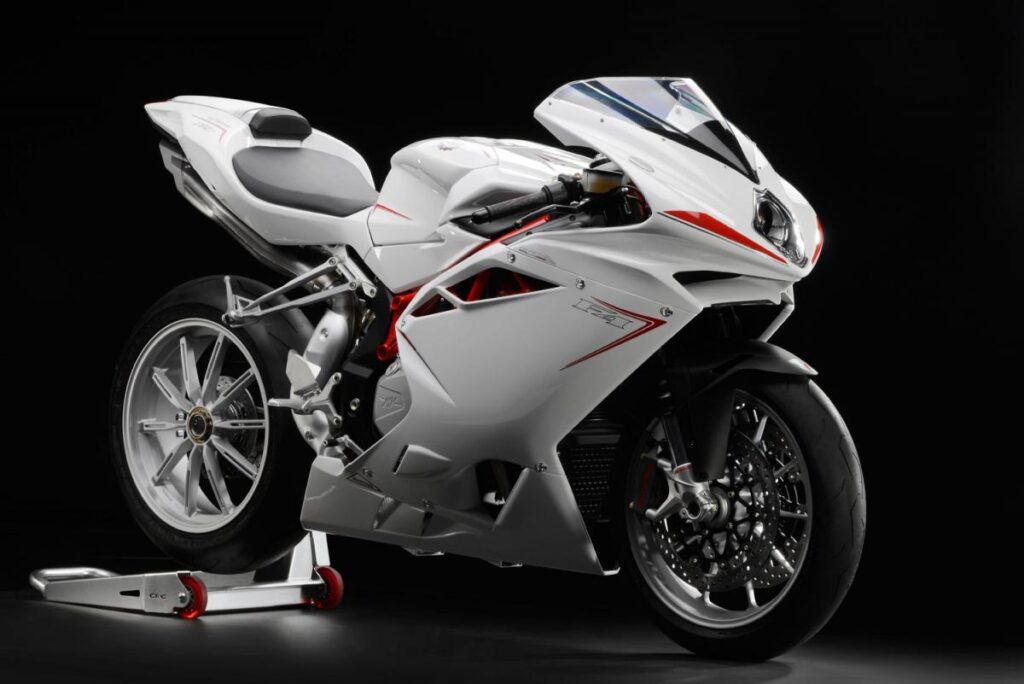

2013 MV Agusta F4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 MV Agusta F4.

Basic Specs

Year2013
MakeMV Agusta
ModelMV Agusta F4
TypeSport
Cost Euro 16990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.4:1
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder4
FuelingInjection
IgnitionIntegrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc with back torque limiting device
Driveline6-speed constant mesh

Performance

Horespower195.00 HP (142.3 kW)
Torque110.80 Nm (11.3 kgf-m or 81.7 ft.lbs)
Top Speed291.2 km/h (180.9 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeCrMo Steel Tubular Trellis
Rake
Trail100 mm (4.0 inches)
Front SuspensionMarzocchi “UPSIDE - DOWN” telescopic hydraulic fork with adjustable rebound-compression damping and external spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionAdjustable monoshock with high and low speed compression settings
Rear Travel120 mm (4.7 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,115 mm (83.3 inches)
Total Width750 mm (29.5 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight191.0 kg (421.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. Brembo radial-type, single-piece with 4 pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MV Agusta F4. This Sport model is powered by a In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 13.4:1 compression. Fueling is metered via Injection allowing this machine to produce its 195.00 HP (142.3 kW) horsepower and 110.80 Nm (11.3 kgf-m or 81.7 ft.lbs) torque. According to our records engine heat of the MV Agusta F4 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, CrMo Steel Tubular Trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo radial-type, single-piece with 4 pistons front brakes and Single disc rear brakes. The MV Agusta F4 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
