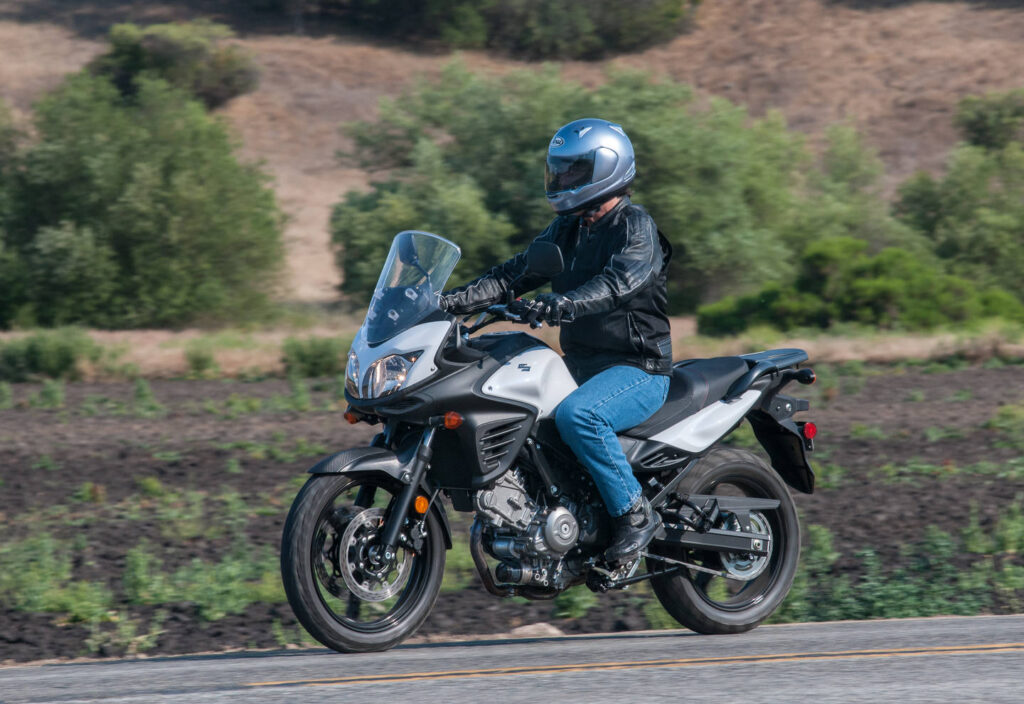

2013 Suzuki V-Strom 650 ABS Tourer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Suzuki V-Strom 650 ABS Tourer.

Basic Specs

Year2013
MakeSuzuki
ModelSuzuki V-Strom 650 ABS Tourer
Cost

Engine

Displacement645.00 ccm (39.36 cubic inches)
Type90-degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke81.0 x 62.6 mm (3.2 x 2.5 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel237 mm (9.3 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Travel125 mm (4.9 inches)
Seat
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,405 mm (55.3 inches)
Total Length2,290 mm (90.2 inches)
Total Width835 mm (32.9 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1,560 mm (61.4 inches)
Dry Weight
Wet Weight214.0 kg (471.8 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Antilock Brake System (ABS)
Front Brake Diameter
Rear BrakesSingle disc. Antilock Brake System (ABS)
Rear Brake Diameter
WheelsLightweight aluminum-alloy wheels

Comments

It appears you're interested in specifications for the Suzuki V-Strom 650 ABS Tourer. This Sport touring model is powered by a 90-degree V-Twin V2, four-stroke engine with 645.00 ccm (39.36 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki V-Strom 650 ABS Tourer is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 150/70-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Antilock Brake System (ABS) front brakes and Single disc. Antilock Brake System (ABS) rear brakes. The Suzuki V-Strom 650 ABS Tourer was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
