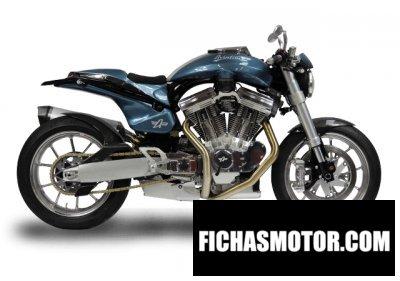

2014 Avinton Grand Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Avinton Grand Sport.

Basic Specs

Year2014
MakeAvinton
ModelAvinton Grand Sport
Cost

Engine

Displacement1645.00 ccm (100.38 cubic inches)
TypeS and S V-Twin at 45 degree
DetailsV2, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke101.6 x 101.0 mm (4.0 x 4.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically
IgnitionC.D.I.
ExhaustArrow Carbon Silencer
LubricationDry sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchBeringer Clutch Lever
DrivelineKevlar belt primary

Performance

Horespower120.00 HP (87.6 kW)
Torque168.00 Nm (17.1 kgf-m or 123.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame TypeTubular with suspended engine, oil circuit integrated in the frame
Rake22.0°
Trail85 mm (3.3 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
SeatComfort seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,380 mm (54.3 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Beringer double disc front breaks with 2 x 6 pistons calipers.
Front Brake Diameter335 mm (13.2 inches)
Rear BrakesSingle disc. Beringer break lever
Rear Brake Diameter282 mm (11.1 inches)
WheelsMachined aluminium Marchesini rim

Comments

It appears you're interested in specifications for the Avinton Grand Sport. This Naked bike model is powered by a S and S V-Twin at 45 degree V2, four-stroke engine with 1645.00 ccm (100.38 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Carburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically allowing this machine to produce its 120.00 HP (87.6 kW) horsepower and 168.00 Nm (17.1 kgf-m or 123.9 ft.lbs) torque. According to our records engine heat of the Avinton Grand Sport is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Tubular with suspended engine, oil circuit integrated in the frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Beringer double disc front breaks with 2 x 6 pistons calipers. front brakes and Single disc. Beringer break lever rear brakes. The Avinton Grand Sport was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

French brand.
