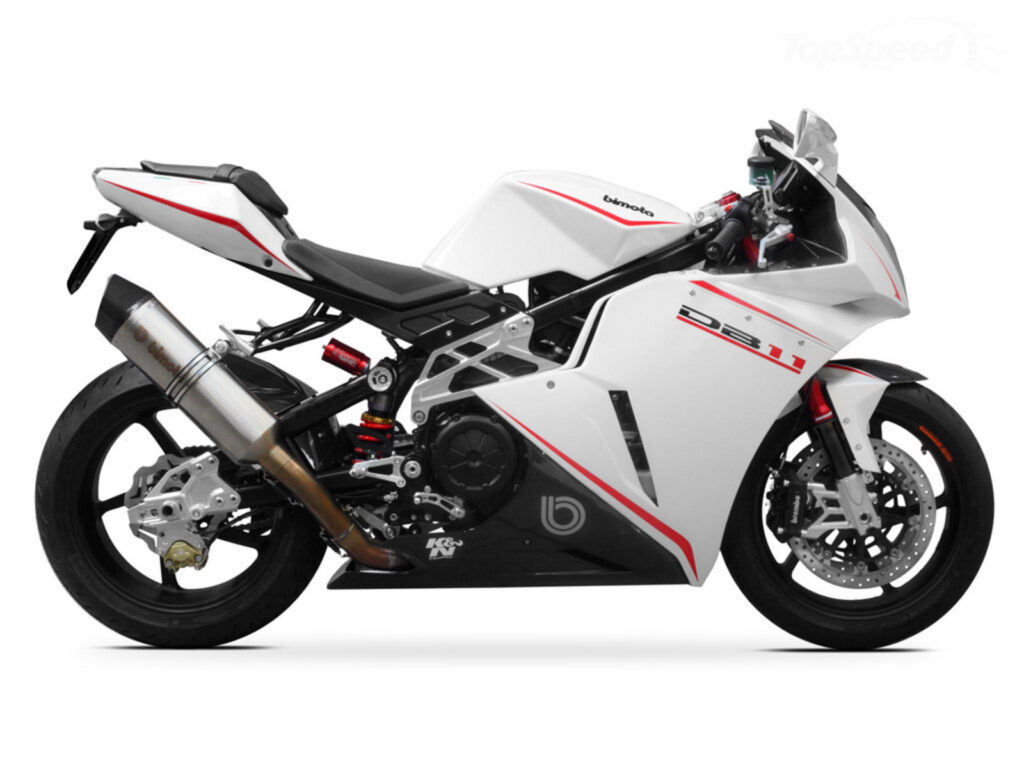

2014 Bimota DB11 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Bimota DB11.

Basic Specs

Year2014
MakeBimota
ModelBimota DB11
TypeSport
Cost

Engine

Displacement1198.00 ccm (73.10 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Athena
Ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-plate
Driveline

Performance

Horespower162.00 HP (118.2 kW)
Torque131.40 Nm (13.4 kgf-m or 96.9 ft.lbs)
Top Speed260.0 km/h (161.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame TypeNiCrMo4 steel and aluminium plates
Rake25.0°
Trail
Front SuspensionMarzocchi 43mm preload -fully adjustable and DLC treated upside-down forks
Front Travel
Rear SuspensionExtreme Tech. Preload-fully adjustable top and lower speed monoshock
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,105 mm (43.5 inches)
Total Length
Total Width730 mm (28.7 inches)
Ground Clearance
Wheelbase1,435 mm (56.5 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Brembo radial, 4 pistons calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo 2-pistons
Rear Brake Diameter230 mm (9.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Bimota DB11. This Sport model is powered by a V2, four-stroke engine with 1198.00 ccm (73.10 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Athena allowing this machine to produce its 162.00 HP (118.2 kW) horsepower and 131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) torque. According to our records engine heat of the Bimota DB11 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, NiCrMo4 steel and aluminium plates. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo radial, 4 pistons calipers front brakes and Single disc. Bremo 2-pistons rear brakes. The Bimota DB11 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Italian brand.
