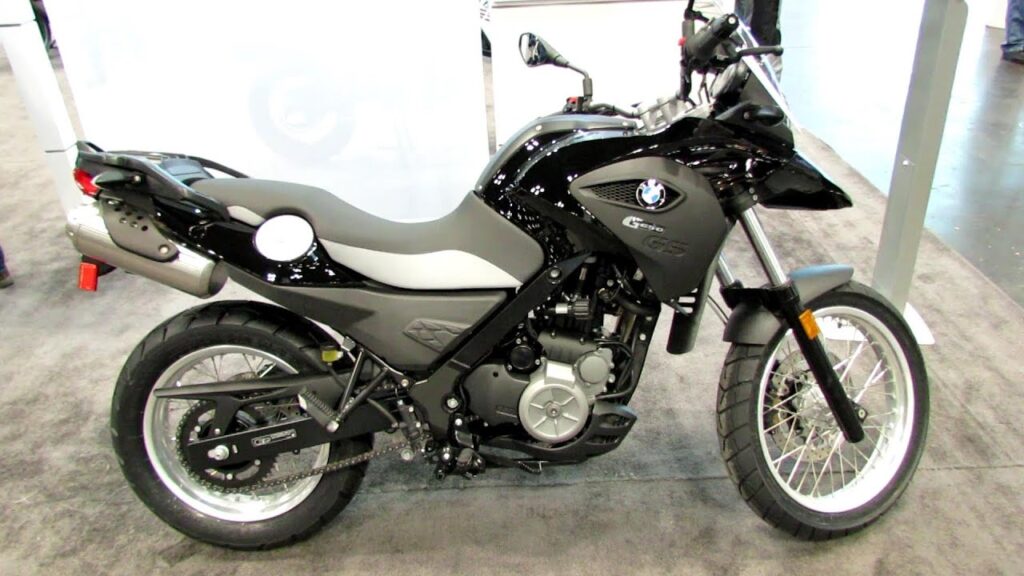

2014 BMW G 650 GS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 BMW G 650 GS.

Basic Specs

Year2014
MakeBMW
ModelBMW G 650 GS
Cost Euro 6195. Prices depend on country, taxes, accessories, etc.

Engine

Displacement652.00 ccm (39.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/BMW engine management, twin spark ignition
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiple-disc clutch in oil bath, mechanically operated
DrivelineEndless O-ring chain with shock damping in rear wheel hub

Performance

Horespower48.00 HP (35.0 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed170.0 km/h (105.6 mph)

Fuel Economy & Polution

Fuel Consumption3.20 litres/100 km (31.3 km/l or 73.51 mpg)
Fuel Capacity14.00 litres (3.70 gallons)
Emissions74.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridge-type steel section frame with bolted on rear section
Rake28.1°
Trail113 mm (4.4 inches)
Front SuspensionTelescopic fork, 41mm diameter, fork stabiliser
Front Travel170 mm (6.7 inches)
Rear SuspensionBox-section steel dual swing-arm, central spring strut operated by lever system, spring pre-load hydraulically adjustable (continuously variable) at hand wheel, rebound damping adjustable
Rear Travel165 mm (6.5 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,390 mm (54.7 inches)
Total Length2,165 mm (85.2 inches)
Total Width920 mm (36.2 inches)
Ground Clearance
Wheelbase1,477 mm (58.1 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight192.0 kg (423.3 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre140/80-R17
Front BrakesSingle disc. Floating discs. Two-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
WheelsCast aluminium

Comments

It appears you're interested in specifications for the BMW G 650 GS. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 652.00 ccm (39.79 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/BMW engine management, twin spark ignition allowing this machine to produce its 48.00 HP (35.0 kW) horsepower and 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) torque. According to our records engine heat of the BMW G 650 GS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 140/80-R17 . The entire package is supported by the frame, Bridge-type steel section frame with bolted on rear section. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating discs. Two-piston calipers. front brakes and Single disc. Floating disc. Single-piston caliper. rear brakes. The BMW G 650 GS was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
