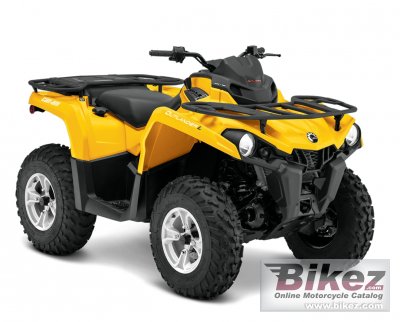

2014 Can-Am Outlander L DPS 450 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Can-Am Outlander L DPS 450.

Basic Specs

Year2014
MakeCan-Am
ModelCan-Am Outlander L DPS 450
TypeATV
CostUS$ 7299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement427.00 ccm (26.06 cubic inches)
TypeRotax engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke94.0 x 61.5 mm (3.7 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. 46 mm Throttle Body, 1 Siemens VDO injector
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveBelt
Clutch
DrivelineSelectable 2WD / 4WD. CVT, sub-transmission with high, low, park, neutral and reverse. Standard engine braking.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.44 litres (5.40 gallons)
Emissions

Chassis

Frame TypeSurrounding Spar Technology (SST) G2
Rake
Trail
Front SuspensionDouble A-arm
Front Travel229 mm (9.0 inches)
Rear SuspensionTorsional Trailing arm Independent (TTI)
Rear Travel220 mm (8.7 inches)
Seat
Seat Height859 mm (33.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,245 mm (49.0 inches)
Total Length2,108 mm (83.0 inches)
Total Width1,168 mm (46.0 inches)
Ground Clearance267 mm (10.5 inches)
Wheelbase1,295 mm (51.0 inches)
Dry Weight307.5 kg (678.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Hydraulic. Two-piston calipers.
Front Brake Diameter214 mm (8.4 inches)
Rear BrakesSingle disc. Hydraulic. Two-piston calipers.
Rear Brake Diameter214 mm (8.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Can-Am Outlander L DPS 450. This ATV model is powered by a Rotax engine Single cylinder, four-stroke engine with 427.00 ccm (26.06 cubic inches) of actual displacement before compression. Fueling is metered via Injection. 46 mm Throttle Body, 1 Siemens VDO injector allowing this machine to produce its horsepower and torque. According to our records engine heat of the Can-Am Outlander L DPS 450 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, Surrounding Spar Technology (SST) G2. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. Two-piston calipers. front brakes and Single disc. Hydraulic. Two-piston calipers. rear brakes. The Can-Am Outlander L DPS 450 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Dynamic Power Steering (DPS)
