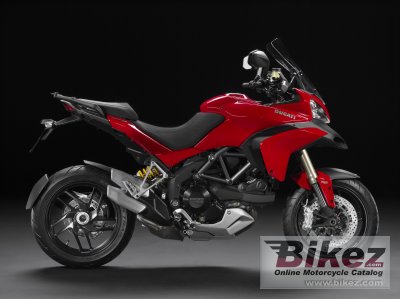

These are the known mechanical and performance specifications for your 2014 Ducati Multistrada 1200.
Basic Specs

Engine
Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Ignition
ExhaustStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
DrivelineChain 5.30
Performance
Horespower147.91 HP (108.0 kW)
Torque124.50 Nm (12.7 kgf-m or 91.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame TypeTubular steel Trellis frame
Rake25.0°
Trail110 mm (4.3 inches)
Front SuspensionMarzocchi 50mm fully adjustable usd forks
Front Travel
Rear SuspensionFully adjustable Sachs unit. Remote spring preload adjustment. Aluminium single-sided swingarm
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight196.0 kg (432.1 pounds)
Wet Weight224.0 kg (493.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre190/55-17
Front BrakesDouble disc. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels
