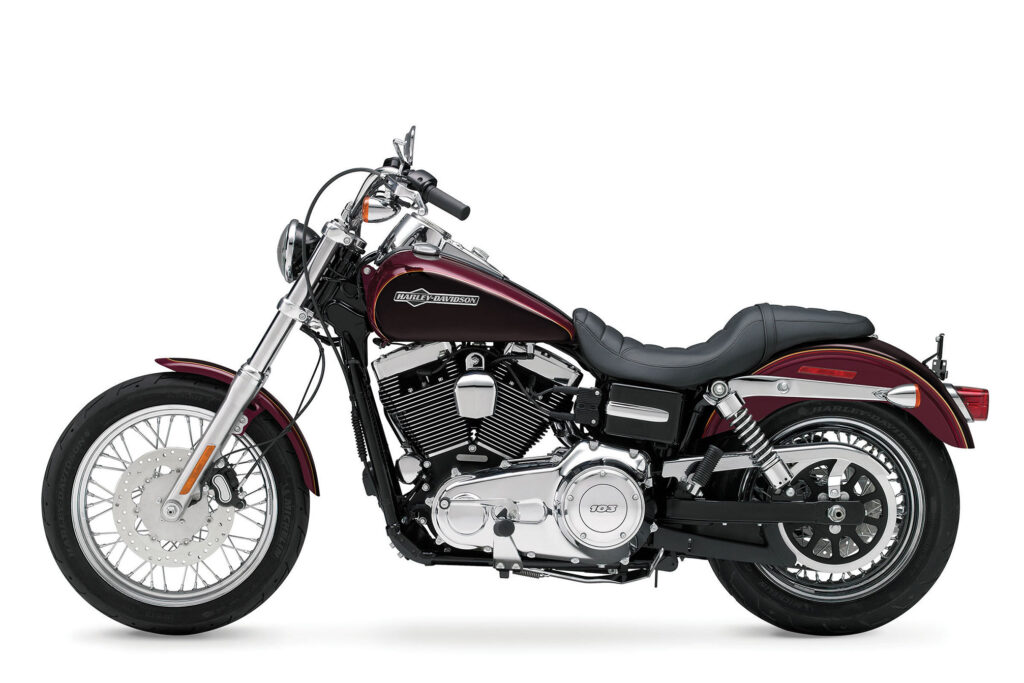

These are the known mechanical and performance specifications for your 2014 Harley-Davidson Dyna Super Glide Custom.
Basic Specs
Year2014
MakeHarley-Davidson
ModelHarley-Davidson Dyna Super Glide Custom
TypeCustom / cruiser
CostUS$ 13549. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1573.25 ccm (96.00 cubic inches)
TypeAir-cooled, Twin Cam 96™
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower
Torque124.75 Nm (12.7 kgf-m or 92.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height668 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,344 mm (92.3 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,626 mm (64.0 inches)
Dry Weight294.8 kg (650.0 pounds)
Wet Weight309.8 kg (683.0 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-H19
Rear Tire/Tyre160/70-V17
Front BrakesSingle disc. 4-piston fixed
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free floating
Rear Brake Diameter
WheelsSteel Laced
