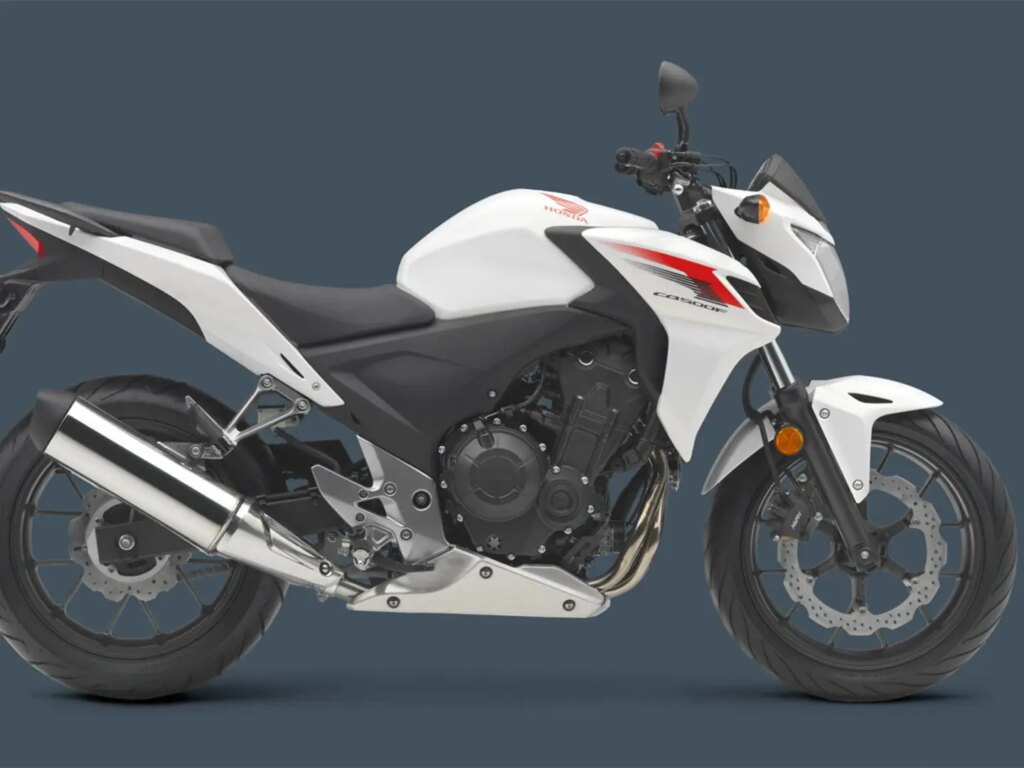

These are the known mechanical and performance specifications for your 2014 Honda CB500F.
Basic Specs
Year2014
MakeHonda
ModelHonda CB500F
TypeNaked bike
CostUS$ 5799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multiplate
DrivelineO-ring-sealed chain
Performance
Horespower46.94 HP (34.3 kW)
Torque43.00 Nm (4.4 kgf-m or 31.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.70 litres (4.15 gallons)
Emissions
Chassis
Frame Type
Rake25.5°
Trail103 mm (4.1 inches)
Front Suspension41mm fork
Front Travel109 mm (4.3 inches)
Rear SuspensionPro-Link single shock with nine-position spring preload adjustability
Rear Travel119 mm (4.7 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,060 mm (41.7 inches)
Total Length2,075 mm (81.7 inches)
Total Width780 mm (30.7 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,410 mm (55.5 inches)
Dry Weight173.4 kg (382.3 pounds)
Wet Weight190.0 kg (418.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesDouble disc. Wave disc. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Wave disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
Model ID: CB500F
